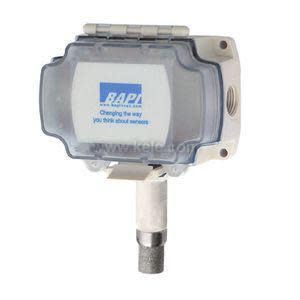

BACOM-F-2-D-M-W | BAPI | Humidity
BAPI-COMM PUSH BUT WITH OVERRDE TEMP/RH NO OVERRDE
Manufacturer:BAPI
MPN:BACOM-F-2-D-M-W
SKU:BACOM-F-2-D-M-W
List Price:
$707.21
Today's Price:
$367.75
product family specifications
Accuracy
Thermistor
±0.36℉, (±0.2℃)
Humidity
±2% RH, (10% to 90%) @ 25℃
Supply Voltage
Sensor
15 to 18 VDC @9mA, (Supplied from the Communication Output Module)
Comm Module
20 to 30 VDC/AC, 25mA maximum, 1.7VA @ 30 VAC
Signal Output
Communication Module Volts 0-5 or 0-10VDC,10kΩ min Resistance 20K span Thermistor 10K-2 or 10K-3
Input
External dry contact connection (Closed = Occupied)
Output (3 maximum)
Volts
0-5 VDC or 0-10 VDC, Imax = 20 mA DA or RA (factory configured)
Reed Switch
0.5A @ 24 VDC
Resistance
20K span, Vmax = 15 VDC, DA or RA (factory configured)
Thermistor
10K-2, 10K-3[11K] (factory configured)
Communication
Polling system (All messages are confirming), Baud rate 1200 baud, Poll Rate 400 ms, Type FSK
Sensing Technology
Sensor
Type II 10,000Ω thermistor
Humidity
Capacitive polymer
Visual Indication
Power
Green LED (on = powered)
Communication
Blue LED (blinks during normal communication)
Occupied
Red LED (on = occupied request)
Indication OPT.:
LCD, (Temp/Humd/Setpoint/Occupied), Window 2.5”x1.5”, Main digit 3.5 digits,0.6” high, ±99.9
Operating Humidity
0-95% RH Non-condensing
Operating Temperature
32° to 122℉ (0° to 50℃)
Enclosure Rating
Comm Module: UL94V-0, RoHS
Wiring
Sensor
2 wires, Up to 500ft, AWG gauge 22-14AWG, twist per foot 5 per ft preferred, Shielding Preferred, Wire spec typical Belden 9841, External sensor 22-18 AWG, TSP, shield grounded, 25' max
Comm Module
Comm. & PWR 2 wires to the sensor, 22-14 AWG, Power In 2 wires, 12-28 AWG, Output 2 wires per output,12-28 AWG, Override Input 2 wires, 16-30 AWG
Wiring Terminations
Sensor
AWG gauge 22-14AWG Twist per foot 5 per ft preferred Shielding Preferred (not required) Wire spec typical Belden 9841, Up to 500 ft (new or exisitng)
Comm Module
Communication
and Power
22-14 AWG
Power In/Output
12-28 AWG (2wires per output)
Override Input
16-30 AWG
Enclosure
ABS Plastic, UL94V-0
Approvals
RoHS
Warranty
1 year
product family features
- Power and communication on just two wires
- Available with temperature sensing, temperature setpoint,
- Occupant override, optional display and optional %RH sensing
- Thermistor, voltage, resistance or dry contact outputs
- Up to 500 ft wire runs - perfect for existing wires
- Multiple sensor options on existing twin wires
more information & related documents
Family Description
The BAPI-COM Series multi-functional humidity and temperture sensor is the newest innovative product from BAPI. It features relative humidity measurement and a full function temperature sensor with temperature setpoint, occupant override, an optional easy-to-read display, all over just two wires. Many existing buildings have two wire sensors but do not have the other sensor features that customers expect in today's sophisticated systems. The BAPI-Com system uses those existing two wires to replace multiple pairs of wires dedicated to just one task. This retrofit sensor can update old systems to a new look without pulling new wire or disrupting the occupants while saving on labor. The sensors are powered and communicate over two wires to a Communication Output Module for use by the BAS system. The outputs are configurable as a thermistor, voltage, resistance or dry contact override output. The sensor is powered by the Communication Output Module which powered by any 24VDC/VAC source.
Kele Description
BAPI-COMM PUSH BUT WITH OVERRDE TEMP/RH NO OVERRDE
