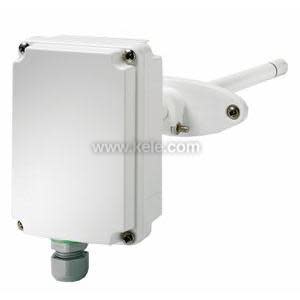

TMD82 | Vaisala | Humidity
Duct Mount Temperature Transmitter, 2-Wire Current Output, IP30 Housing Rating
Brand:Vaisala
MPN:TMD82
SKU:TMD82
List Price:
$489.00
Today's Price:
$254.28
product specifications
Accessory
DCPA-1.2, DCP-1.5-W, UR
Accuracy
±3.00%
Application
Humidification, Dehumidification, Supply, Discharge, Return Air, Economizers, Clean Rooms, Data Centers, Process Control, Schools, Hospitals, Office Buildings
Housing Material
Poly
Housing Rating
IP65
Probe Length
9.60 in
Sensor Element
1K Platinum RTD 385
Output Signal
4-20 mA
Mounting Location
Duct
Power Requirements
24 VAC/VDC
product series specifications
- Accuracy:
- HMW Series:
- Humidity ±3%,0 to 70% RH, 50° to 86‚Ñâ (10° to 30‚ÑÉ)
- TMW Series:
- Temperature ±0.9°F (± 0.50°C)
- Thermal Effect:
- Temperature compensated with less than 0.005% per °F (0.01% per °C)
- Supply Voltage:
- HMX82/TMX82:
- 20 to 28 VDC
- HMX83/TMX83:
- 18 to 35 VDC/24 VAC ±20%
- Signal Output:
- HMXW82/TMX82:
- 4-20 mA @ 600Ω (loop powered)
- HMX83/TMX83:
- 0 to 10 VDC @ 10kΩ
- Measurement Range:
- Humidity:
- 0 to 100% RH
- Temperature:
- 23° to 131°F (-5° to 55°C)
- Sensing Technology:
- Humidity:
- Replaceable Vaisala IntercapÆ
- Temperature:
- Digital Temperature Sensor
- Operating Temperature:
- -40° to 140‚Ñâ (-40° to 60‚ÑÉ)
- Operating Humidity:
- 0 to 100% RH non-condensing
- Enclosure Rating:
- NEMA 1, ABS/ Polycarbonate UL-V0 approved, IP30
- Wiring Terminations:
- Terminal block (22 to 16 AWG)
- Weight:
- Wall:
- 0.25 lb (0.11 Kg)
- Duct:
- 0.65 lb (0.3 Kg)
- Approvals:
- CE (EN61326-1)
- Warranty:
- 2 years
product series features
- Room and Duct models
- 3% accuracy
- 4-20mA and 0-10V models
- Interchangeable humidity sensor
- Two-year warranty
- No recalibration required
- Temperature and humidity outputs
more information & related documents
Series Description
The Vaisala HMW/D8X0 Series room and duct humidity and temperature transmitter features the interchangeable INTERCAP® sensor and is designed for use in energy management systems in buildings. They combine excellent stability with reliable operation. The HMW/D8X Series is easy to install, requires no recalibration if the sensor is changed and is insensitive to dust as well as to most chemicals. This means great savings in overall maintenance costs. The HMW/D80 Series transmitters are available in eight models: HMW/D82 and HMW/D83 transmitters measure both humidity and temperature while the TMW/D82 and TMW/D83 measure temperature only. HMW/D80 Series is available in both 2- and 3-wire and 4-20 mA and voltage analog signals.
Kele Description
DUCT MNT TEMP SENSOR 4-20 MA
Manufacturer
Vaisala
Related Documents
HMW80 Vaisala Datasheet
