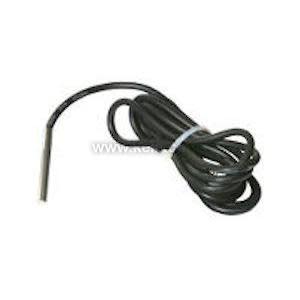

A long black cable coiled neatly with a small silver probe on one end.

40-20 0001 | Vector Controls Ltd | Humidity

Bullet Probe Raw Temperature Sensor, 10K Type II, 6.5 ft Lead Length

Brand:Vector Controls Ltd

MPN:40-20 0001

SKU:S-TN10-2

List Price:

$46.01

Today's Price:

$23.92

product datasheet

installation instructions

catalog page

Lead time of > 15 days. Chat with Kele experts now

product specifications

Type

Temp Sensor

Accuracy

Probe Length

2 in

Sensor Element

10K Type 2 Thermistor

Lead Length

6.5 ft

Accessory

DCPA-1.2,DCP-1.5-W,UR

Application

Humidification,Dehumidification,Supply,Discharge,Return Air,Economizers,Clean Rooms,Data Centers,Process Control,Schools,Hospitals,Office Buildings

product series specifications

Accuracy: ±5% RH (10-90%)

Supply Voltage: 24 VAC ±10%, 50/60 Hz @ 1.5 VA; 24 VDC ±10%, @ 63 mA

Analog Input: 10K Type II (Type 24) thermistor

Relay Output: 2 NO SPST Relays, 1.2 Amps @ 250 VAC

Operating Temperature: 32° to 122°F (0° to 50°C)

Operating Humidity: 0% to 95% non-condensing

Enclosure Rating: NEMA 1, Polycarbonate PC (UL class V-0)

Wiring Terminations: Terminal block (12 to 24 AWG)

Weight: 0.48 lb (0.22 Kg)

Approvals: CE

Warranty: 2 years

product series features

Humidification and Dehumidification control
External temperature input for set point setback
Programmable user interface
Optional time clock, 24 hour, 7 day
2 relay outputs
Easy to read display
Replaceable sensor

more information & related documents

Series Description

The Vector TDC-BH-U Series duct mount humidistat is a stand-alone programmable electronic humidistat designed for controlling humidification and dehumidification equipment in HVAC and energy management systems. The TDC-BH-U Series features one internal humidity sensor, one external temperature sensor input and two relay outputs. Humidity reset is possible using the ST-O24 outdoor air temperature sensor for cold weather applications to prevent condensation. The TDC-BH-U-D Series comes with all of the features of the base model plus a time clock feature for advanced programming with 48 hour backup.

Kele Description

RAW TEMP SENSOR W/6 CBLE 10KO TYPE II THERM

Manufacturer

Vector Controls Ltd
