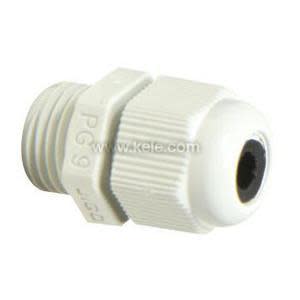

A small white cylindrical connector with screw threads on one end and a domed, ribbed cap, used to clamp a cable.

AMC-1 | Vector Controls Ltd | Humidity

Cable Gland For SDC-H1

Brand:Vector Controls Ltd

MPN:AMC-1

SKU:AMC-1

List Price:

$7.84

Today's Price:

$4.08

catalog page

product specifications

Type

Cable Gland

product series specifications

Accuracy: ±3% RH (20%-80%)(H models)

Supply Voltage: 24 VAC ±10% 3 VA, 50-60 Hz; 24 VDC, 125 mA

Signal Output:

Analog: 0/2-10 VDC or 0/4-20 mA @250 Ω

Digital: 24 VAC/VDC @ 2 A

Signal Input (U models):

13: 0/2-10 VDC or 0/4-20 mA @ 240 Ω

23: 0/2-10 VDC or 0/4-20 mA @ 240 Ω & 10k Ω Type II thermistor (24)

Measurement Range: 0 to 100 % RH

Operating Humidity: 0% to 95% non-condensing

Operating Temperature: 32° to 122°F (-25° to 50°C)

Enclosure Rating: ABS Plastic

Sensing Technology: Capacitive sensor

Wiring Terminations: Terminal block (12 to 24 AWG)

Dimensions: 4.4" H x 2.9" W x 1.8" D (11.2 x 7.3 x 4.7 cm)

Approvals: CE

Weight:

13: 0.58 lb (0.26 Kg)

23: 0.6 lb (0.27 kg)

Warranty: 2 years

product series features

Humidification and dehumidification control
External temperature input for set point setback
Programmable user interface
Optional time clock
2 analog outputs
Easy to read display

more information & related documents

Series Description

The Vector Model TCI wall and duct proportional controller is designed for proportional control of humidification and dehumidification equipment in HVAC and energy management systems. The in.23 in. models comes with a time clock for advanced programming with 48 hour backup and the in.13 in. models do not. The in.H in. models have internal relative humidity sensors and the others without in.H in. in model number must use a remote relative humidity sensor (ordered separately) for RH measurement.

Kele Description

CABLE GLAND FOR SDC-H1

Manufacturer

Vector Controls Ltd
