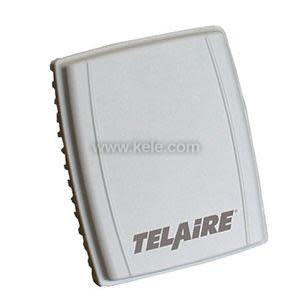

GEH5-RHS | Telaire/Amphenol | Humidity
Humidity Transmitter, Wall, ±5.00%, 40° to 90°F
Brand:Telaire/Amphenol
MPN:GEH5-RHS
SKU:GEH5-RHS
List Price:
$108.00
Today's Price:
$56.16
Log in for customized pricingproduct specifications
Type
RH Tip
Accuracy
5%
Housing Material
Poly
Sensor Element
10K Thermistor
Temperature Range
40 to 90 °F (4.4 to 32.2 °C)
Output
4 - 20 mA
Power Requirements
12-30 VDC
Accessory
DCPA-1.2,DCP-1.5-W,T81U-XR,T85U-XR,UR
Application
Humidification,Dehumidification,Supply Air,Discharge Air,Return Air,Economizers,Clean Rooms,Data Centers,Process Control,Schools,Hospitals,Office Buildings,Labs,Refrigeration,Museums,Archives
Mount
Room
product series specifications
Accuracy: 5% (10% to 90%)
Supply Voltage: 12-30 VDC, 100 mA
Signal Output:4-20 mA @ 700Ω, 0-5V/0-10V selectable @ 10KΩ max.; 0-100% RH
Sensing Technology: Capacitive and replaceable
Operating Humidity: 0% to 99%, non-condensing
Operating Temperature:-40° to 140°F (-40° to 60°C)
Duct/OSA: IP42, NEMA 3R Stainless steel with removable tip, PTFE Teflon® shield
Wiring Terminations: 16 to 22 AWG terminals
Weight:
Room: 0.34 lb (0.15 Kg)
Duct: 0.96 lb (0.44 Kg)
OSA: 1.22 lb (0.55 Kg)
Warranty: 2 years
product series features
- ±5% accuracy
- Temperature compensated
- Field-selectable 4-20 mA, 0-10V, or 0-5V outputs
- Replaceable sensor
- Optional temperature transmitter
more information & related documents
Series Description
The Telaire/Amphenol Advanced Sensors GEH5 Series 5% accuracy humidity transmitters are designed specifically for commercial HVAC/BAS applications. The room, duct, and OSA transmitters have replaceable sensor tips and switch-selectable outputs of 4-20 mA, 0-5 VDC or 0-10 VDC. The GEH5 Series also has an optional temperature transmitter, which has the same selectable outputs as humidity. All duct and OSA units come in weather-resistant enclosures rated for IP42 or NEMA 3R applications.
Kele Description
5% REPLACEMENT RH TIP ROOM (4 PIN)
Manufacturer
Telaire/Amphenol
Related Documents
GEH5 Series Datasheet
