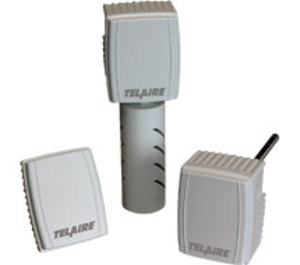

* product series image displayed

GEH2-RHTT | Telaire/Amphenol | Humidity

2% REPLACEMENT RH TIP-DUCT OSA (4 PIN)

Brand:Telaire/Amphenol

MPN:GEH2-RHTT

SKU:GEH2-RHTT

List Price:

$206.00

Today's Price:

$107.12

catalog page

Lead time of 7 days. Chat with Kele experts now

product specifications

Type

RH Tip

Power Requirements

12-30 VDC

Mount

Duct

product series specifications

Accuracy: 2% (10% to 90%)

Supply Voltage: 12-30 VDC, 100mA

Signal Output: 4-20 mA @ 700Ω, 0-5V/0-10V selectable @ 10KΩ max.; 0-100% RH

Sensing Technology: Capacitive and replaceable

Operating Humidity: 0% to 99%, non-condensing

Operating Temperature: -40° to 140°F (-40° to 60°C)

Enclosure Rating:

Room: ABS plastic, UL94V Room Installed IP20, NEMA 1

Duct/OSA: IP42, NEMA 3R Stainless steel with removable tip, PTFE Teflon® shield

Wiring Terminations: 16 to 22 AWG terminals

Weight:

Room: 0.34 lb (0.15 Kg)

Duct: 0.96 lb (0.44 Kg)

OSA: 1.22 lb (0.55 Kg)

Warranty: 2 years

product series features

±2% accuracy
Temperature compensated
Field-selectable 4-20 mA, 0-10V, or 0-5V outputs
Replaceable sensor
Optional temperature transmitter

more information & related documents

Series Description

The Amphenol Advanced Sensors Model GEH2 Series 2% Accuracy Humidity Transmitters are designed specifically for humidity measurement for commercial building automation systems, BAS, and HVAC applications. The room, duct and OSA transmitters use replaceable humidity sensor tips and switch selectable transmission including 4-20mA, 0-5 volt or 0-10 volt DC. The GEH also has an optional temperature transmitter output with selectable outputs (RH&T must be the same type). All duct and OSA enclosures are rated for IP42 or NEMA 3R applications.

Kele Description

2% REPLACEMENT RH, W/ TEMP, TIP-DUCT OSA (4 PIN)

Manufacturer

Telaire/Amphenol
