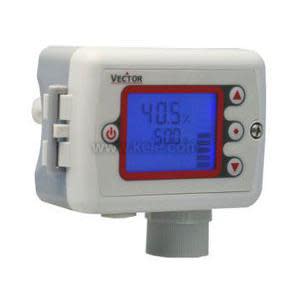

TDC-BH-U-D-W25 | Vector Controls Ltd | Humidity
Deluxe Duct Humidistat Sensor, 5%, LCD Display, 1 Humidity Internal Input, 1 External Temperature Input, 1 DO Relay for Humidifier or Dehumidifier, 1 DO Relay for Fan
Manufacturer:Vector Controls Ltd
MPN:TDC-BH-U-D-W25
SKU:TDC-BH-U-D-W25
List Price:
$461.83
Today's Price:
$240.15
product specifications
Accessory
AES-HT-A5||DCPA-1.2||DCP-1.5-W||UR
Application
Humidification||Dehumidification||Supply||Discharge||Return Air||Economizers||Clean Rooms||Data Centers||Process Control||Schools||Hospitals||Office Buildings
Description
Deluxe Duct Humidistat Sensor, 5%, LCD Display, 1 Humidity Internal Input, 1 External Temperature Input, 1 DO Relay for Humidifier or Dehumidifier, 1 DO Relay for Fan
Housing Material
Poly
Housing Rating
IP30
Humidity Accuracy
±5.00%
LCD
LCD
Output
Relay
Probe Length
3.00"
Sensor Element
NO TEMP
Short Description
RH XMTR, DUCT, ±5.00%, NO TEMP
Type
Duct
product family features
- Humidification and Dehumidification control
- External temperature input for set point setback
- Programmable user interface
- Optional time clock, 24 hour, 7 day
- 2 relay outputs
- Easy to read display
- Replaceable sensor
more information & related documents
Family Description
The Vector TDC-BH-U Series duct mount humidistat is a stand-alone programmable electronic humidistat designed for controlling humidification and dehumidification equipment in HVAC and energy management systems. The TDC-BH-U Series features one internal humidity sensor, one external temperature sensor input and two relay outputs. Humidity reset is possible using the ST-O24 outdoor air temperature sensor for cold weather applications to prevent condensation. The TDC-BH-U-D Series comes with all of the features of the base model plus a time clock feature for advanced programming with 48 hour backup.
Kele Description
5% DUCT MNT HUMIDISTAT W/DISP FAN CTRL PROG CLCK
Manufacturer
Vector Controls Ltd
