TCY-BH-U-W25

TCY-BH-U-W25 | Vector Controls Ltd | Humidity

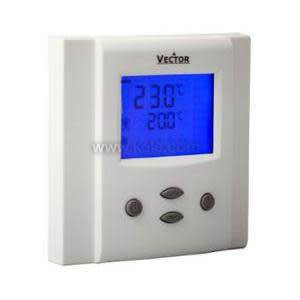

5% Wall Mount Humidistat W/Display And Fan Control

Manufacturer:Vector Controls Ltd

MPN:TCY-BH-U-W25

SKU:TCY-BH-U-W25

List Price:

$380.63

Today's Price:

$197.93



Availability: Usually Ships in Less Than 10 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

view product datasheetview installation instructionsview catalog page

product specifications

Accessory

AES-HT-A5||S-TN10||SD-TN10||DCPA-1.2||DCP-1.5-W||UR

Application

Humidification||Dehumidification||Monitoring Indoor Space Humidity||Clean Rooms||Hospitals||Process Control||Laboratories,Museums||Schools||Office Buildings||Data Centers||ESD (Anti-Static) Control

Description

5% Wall Mount Humidistat W/Display And Fan Control

Feature

Fan Control

Housing Material

Poly

Housing Rating

IP30

Humidity Accuracy

±5.00%

LCD

LCD

Output

Relays

Sensor Element

10K

Short Description

RH XMTR, WALL, ±5.00%, RELAYS, 10K

Type

Wall

product family features

Humidification and dehumidification control,External temperature input for set point setback,Programmable user interface,Optional time clock, 24 hour, 7 day,2 relay outputs,Easy to read display,Replaceable sensor

more information & related documents

Family Description

The Vector TCY-BH-U Series wall mount humidistat is a stand-alone programmable electronic humidistat designed for controlling humidification and dehumidification equipment in HVAC and energy management systems. The TCY-BH-U Series features one internal humidity sensor, one external temperature sensor input and two relay outputs. Humidity reset is possible using the ST-024 outdoor air temperature sensor for cold weather applications to prevent condensation. The TCY-BH-U-D Series comes with all of the features of the base model plus a time clock feature for advanced programming with 48 hour backup.

Kele Description

5% WALL MOUNT HUMIDISTAT W/DISPLAY AND FAN CONTROL

Manufacturer

Vector Controls Ltd

Related Documents

PDF - TCY-BH-U Engineering Manual.pdf TCY-BH-U Engineering Manual
PDF - TCY Humidistat Overview.pdf TCY Humidistat Overview
