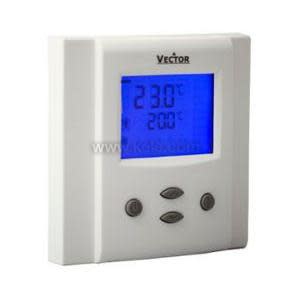

TCY-BH-U-D-W25 | Vector Controls Ltd | Humidity
5% Deluxe Wall Mount Humidistat W/Display Fan Control Program Clock
Manufacturer:Vector Controls Ltd
MPN:TCY-BH-U-D-W25
SKU:TCY-BH-U-D-W25
List Price:
$428.33
Today's Price:
$222.73
product specifications
Accessory
AES-HT-A5||S-TN10||SD-TN10||DCPA-1.2||DCP-1.5-W||UR
Application
Humidification||Dehumidification||Monitoring Indoor Space Humidity||Clean Rooms||Hospitals||Process Control||Laboratories,Museums||Schools||Office Buildings||Data Centers||ESD (Anti-Static) Control
Description
5% Deluxe Wall Mount Humidistat W/Display Fan Control Program Clock
Feature
Fan Control
Housing Material
Poly
Housing Rating
IP30
Humidity Accuracy
±5.00%
LCD
LCD
Output
Relays
Sensor Element
10K
Short Description
RH XMTR, WALL, ±5.00%, RELAYS, 10K
Type
Wall
product family features
- Humidification and dehumidification control
- External temperature input for set point setback
- Programmable user interface
- Optional time clock, 24 hour, 7 day
- 2 relay outputs
- Easy to read display
- Replaceable sensor
more information & related documents
Family Description
The Vector TCY-BH-U Series wall mount humidistat is a stand-alone programmable electronic humidistat designed for controlling humidification and dehumidification equipment in HVAC and energy management systems. The TCY-BH-U Series features one internal humidity sensor, one external temperature sensor input and two relay outputs. Humidity reset is possible using the ST-024 outdoor air temperature sensor for cold weather applications to prevent condensation. The TCY-BH-U-D Series comes with all of the features of the base model plus a time clock feature for advanced programming with 48 hour backup.
Kele Description
5% WALL MNT HUMIDISTAT W/DISP FAN CTRL PROG CLCK
Manufacturer
Vector Controls Ltd
