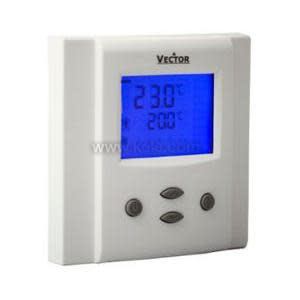

TCY-BH-U-D-W24 | Vector Controls Ltd | Humidity
5% Deluxe Wall Mount Humidistat W/Display Fan Control Program Clock
Brand:Vector Controls Ltd
MPN:TCY-BH-U-D-W24
SKU:TCY-BH-U-D-W24
product specifications
Accessory
AES-HT-A5, S-TN10, SD-TN10, DCPA-1.2, DCP-1.5-W, UR
Feature
Fan Control
Accuracy
5%
Application
Humidification, Dehumidification, Monitoring Indoor Space Humidity, Clean Rooms, Hospitals, Process Control, Laboratories,Museums, Schools, Office Buildings, Data Centers, ESD (Anti-Static) Control
Housing Material
Poly
Housing Rating
IP30
Sensor Element
10K Thermistor
Display
LCD
Output Signal
4-20 mA
Mounting Location
Room
Power Requirements
24 VAC/VDC
product series specifications
- Accuracy:
- ±5% RH (10-90%)
- Supply Voltage:
- 24 VAC ±10%, 50/60 Hz @ 1.5 VA; 24 VDC ±10% @ 62.5 mA
- Analog Input:
- 10k Type II (Type 24) Thermistor
- Relay Output:
- 2 NO SPST Relays, 1.2 Amps @ 24 VAC
- Operating Temperature:
- 32° to 122°F (0° to 50°C)
- Operating Humidity:
- 0% to 95% non-condensing
- Enclosure Rating:
- NEMA 1, ABS plastic (UL94 class V-0)
- Wiring Terminations:
- Terminal block (12 to 24 AWG)
- Dimensions:
- 4.4"H x 2.9"W x 1.8"D (11.2 x 7.3 x 4.7 cm)
- Weight:
- 0.58 lb (0.26 Kg)
- Approvals:
- CE
- Warranty:
- 2 years
product series features
- Humidification and dehumidification control
- External temperature input for set point setback
- Programmable user interface
- Optional time clock, 24 hour, 7 day
- 2 relay outputs
- Easy to read display
- Replaceable sensor
more information & related documents
Series Description
The Vector TCY-BH-U Series wall mount humidistat is a stand-alone programmable electronic humidistat designed for controlling humidification and dehumidification equipment in HVAC and energy management systems. The TCY-BH-U Series features one internal humidity sensor, one external temperature sensor input and two relay outputs. Humidity reset is possible using the ST-024 outdoor air temperature sensor for cold weather applications to prevent condensation. The TCY-BH-U-D Series comes with all of the features of the base model plus a time clock feature for advanced programming with 48 hour backup.
Kele Description
5% WALL MNT HUMIDISTAT W/DISP FAN CTRL PROG CLCK
Manufacturer
Vector Controls Ltd
Related Documents
TCY Humidistat Overview
