TCI-W23-U-W27 | Vector Controls Ltd | Humidity

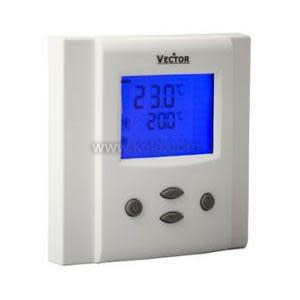

Deluxe Wall Mounted Universal Controller, 2 Loop, PI-Controller, 1 UI, 2 AO, 1 DO (Relay), Temperature, Dehumidification Remote RH
Manufacturer:Vector Controls Ltd
MPN:TCI-W23-U-W27
SKU:TCI-W23-U-W27
List Price:
$442.54
Today's Price:
$230.12
product specifications
Accessory
AES3-HT-A2||AES3-HT-A3||DCPA-1.2||DCP-1.5-W||UR
Application
Humidification||Dehumidification||Monitoring Indoor Space Humidity||Clean Rooms||Hospitals||Process Control||Laboratories,Museums||Schools||Office Buildings||Data Centers||ESD (Anti-Static) Control
Description
Deluxe Wall Mounted Universal Controller, 2 Loop, PI-Controller, 1 UI, 2 AO, 1 DO (Relay), Temperature, Dehumidification Remote RH
Housing Material
Poly
Housing Rating
IP30
Humidity Accuracy
±3.00%
LCD
LCD
Output
4-20 mA||0-10 VDC
Short Description
RH XMTR, WALL, ±3.00%, 4-20 MA OR 0-10 VDC, NO TEMP
Type
Wall
product family features
more information & related documents
Family Description
The Vector Model TCI wall and duct proportional controller is designed for proportional control of humidification and dehumidification equipment in HVAC and energy management systems. The in.23 in. models comes with a time clock for advanced programming with 48 hour backup and the in.13 in. models do not. The in.H in. models have internal relative humidity sensors and the others without in.H in. in model number must use a remote relative humidity sensor (ordered separately) for RH measurement.
Kele Description
3% WALL MNT PROP HUMSTAT DSP DEHUMID/CLOCK REMT RH
Manufacturer
Vector Controls Ltd
