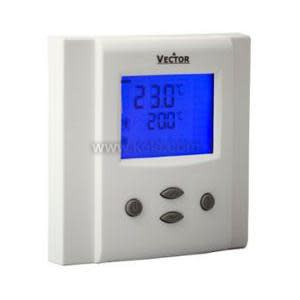

White digital thermostat featuring blue backlit display and three grey buttons on the front

TCI-W13-U-W26 | Vector Controls Ltd | Humidity

Wall Mounted Universal Controller, 1 Loop, PI-Controller, 1 UI, 2 AO, 1 DO (Relay), Temperature, Humidification Remote RH

Brand:Vector Controls Ltd

MPN:TCI-W13-U-W26

SKU:TCI-W13-U-W26

List Price:

$444.93

Today's Price:

$231.36

product datasheet

installation instructions

catalog page

Lead time of 9 days. Chat with Kele experts now

product specifications

Type

Wall

Accuracy

Housing Material

Poly

Output

4 - 20 mA

Display

LCD

Enclosure Rating

IP30

Power Requirements

24 VAC/VDC

Accessory

AES3-HT-A2,AES3-HT-A3,DCPA-1.2,DCP-1.5-W,UR

Application

Humidification,Dehumidification,Monitoring Indoor Space Humidity,Clean Rooms,Hospitals,Process Control,Laboratories,Museums,Schools,Office Buildings,Data Centers,ESD (Anti-Static) Control

Mount

Room

product series specifications

Accuracy: ±3% RH (20%-80%)(H models)

Supply Voltage: 24 VAC ±10% 3 VA, 50-60 Hz; 24 VDC, 125 mA

Signal Output:

Analog: 0/2-10 VDC or 0/4-20 mA @250 Ω

Digital: 24 VAC/VDC @ 2 A

Signal Input (U models):

13: 0/2-10 VDC or 0/4-20 mA @ 240 Ω

23: 0/2-10 VDC or 0/4-20 mA @ 240 Ω & 10k Ω Type II thermistor (24)

Measurement Range: 0 to 100 % RH

Operating Humidity: 0% to 95% non-condensing

Operating Temperature: 32° to 122°F (-25° to 50°C)

Enclosure Rating: ABS Plastic

Sensing Technology: Capacitive sensor

Wiring Terminations: Terminal block (12 to 24 AWG)

Dimensions: 4.4" H x 2.9" W x 1.8" D (11.2 x 7.3 x 4.7 cm)

Approvals: CE

Weight:

13: 0.58 lb (0.26 Kg)

23: 0.6 lb (0.27 kg)

Warranty: 2 years

product series features

Humidification and dehumidification control
External temperature input for set point setback
Programmable user interface
Optional time clock
2 analog outputs
Easy to read display

more information & related documents

Series Description

The Vector Model TCI wall and duct proportional controller is designed for proportional control of humidification and dehumidification equipment in HVAC and energy management systems. The in.23 in. models comes with a time clock for advanced programming with 48 hour backup and the in.13 in. models do not. The in.H in. models have internal relative humidity sensors and the others without in.H in. in model number must use a remote relative humidity sensor (ordered separately) for RH measurement.

Kele Description

3% WALL MNT PROP HUMSTAT DISP HUMID REMOTE RH

Manufacturer

Vector Controls Ltd
