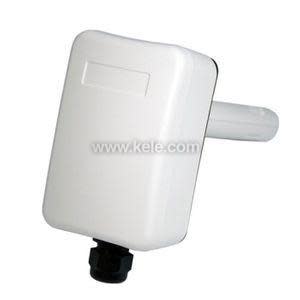

A white rectangular sensor box with a cylindrical probe extending to the right and a black connector at the bottom.

HED5MSTD2 | Veris | Humidity

Relative Humidity Sensor, Duct Mount, ±5%, 4-20 mA, Standard, Temperature, 10K Type 2 Thermistor, NIST 2 pt

Brand:Veris

MPN:HED5MSTD2

SKU:HED5MSTD2

List Price:

$-.--

Today's Price:

$-.--

product datasheet

installation instructions

product specifications

Accuracy

Housing Material

Metallic

Probe Length

6 in

Sensor Element

10K Type 2 Thermistor

Output

4 - 20 mA

Power Requirements

24 VAC/VDC

Accessory

HS5XX,DCPA-1.2,DCP-1.5-W,UR

Feature

NIST 2 pt

Application

Humidification,Dehumidification,Supply,Discharge,Return Air,Economizers,Clean Rooms,Data Centers,Process Control,Schools,Hospitals,Office Buildings

Mount

Duct

more information & related documents

Series Description

The Veris HEW, HED, HO, HD & HW Series deluxe humidity transmitters measure relative humidity in all conditions. All devices are equipped with a thin-film capacitive sensor that is replaceable in the field. The wall-mounted HW model featues a low-profile housing with an LCD display.

Kele Description

5% RH DUCT 4-20MA TEMP 10K 2 NIST 2 PT

Manufacturer

Veris
