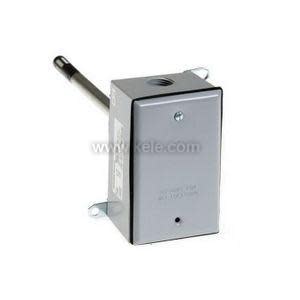

Rectangular grey metal box with a slender black probe extending from one end and a metal bracket for mounting.

HD5XVSTF | Veris | Humidity

Relative Humidity Sensor, Duct Mount, ±5%, No NIST Certficate, 0-5 VDC or 0-10 VDC, Standard, Temperature Transmitter, 3K, No Temperature Certificate

Brand:Veris

MPN:HD5XVSTF

SKU:HD5XVSTF

List Price:

$485.00

Today's Price:

$252.20

product datasheet

installation instructions

Lead time of 12 days. Chat with Kele experts now

product specifications

Accuracy

Housing Material

Metallic

Probe Length

8.50 in

Sensor Element

3K Thermistor

Output

0 - 5 VDC

Power Requirements

24 VAC/VDC

Accessory

HS5XX,DCPA-1.2,DCP-1.5-W,UR

Application

Humidification,Dehumidification,Supply,Discharge,Return Air,Economizers,Clean Rooms,Data Centers,Process Control,Schools,Hospitals,Office Buildings

Mount

Duct

more information & related documents

Series Description

The Veris HEW, HED, HO, HD & HW Series deluxe humidity transmitters measure relative humidity in all conditions. All devices are equipped with a thin-film capacitive sensor that is replaceable in the field. The wall-mounted HW model featues a low-profile housing with an LCD display.

Kele Description

5% RH DUCT 5/10VDC TEMP 3K

Manufacturer

Veris
