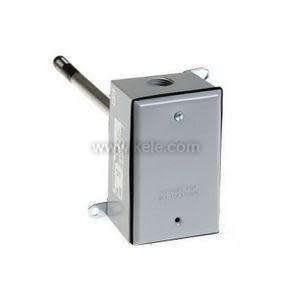

HD5XMSTC | Veris | Humidity
Relative Humidity Sensor, Duct Mount, ±5%, No NIST Certficate, 4-20 mA, Standard, Temperature Transmitter, 1K Platinum RTD, No Temperature Certificate
Brand:Veris
MPN:HD5XMSTC
SKU:HD5XMSTC
product specifications
Accuracy
5%
Housing Material
Metallic
Probe Length
8.50 in
Sensor Element
1K Platinum RTD 385
Output
4 - 20 mA
Power Requirements
24 VAC/VDC
Accessory
HS5XX,DCPA-1.2,DCP-1.5-W,UR
Application
Humidification,Dehumidification,Supply,Discharge,Return Air,Economizers,Clean Rooms,Data Centers,Process Control,Schools,Hospitals,Office Buildings
Mount
Duct
more information & related documents
Series Description
The Veris HEW, HED, HO, HD & HW Series deluxe humidity transmitters measure relative humidity in all conditions. All devices are equipped with a thin-film capacitive sensor that is replaceable in the field. The wall-mounted HW model featues a low-profile housing with an LCD display.
Kele Description
5% RH DUCT 4-20MA TEMP 1K OHM 385 RTD
Manufacturer
Veris
HW Installation manual
