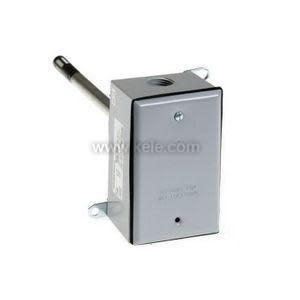

HD3XVSTH2 | Veris | Humidity
Relative Humidity Sensor, Duct Mount, ±3%, No NIST Certficate, 0-5 VDC or 0-10 VDC, Standard, Temperature Transmitter, 10K Type 3 Thermistor, NIST 2 pt
Brand:Veris
MPN:HD3XVSTH2
SKU:HD3XVSTH2
product specifications
Accuracy
3%
Housing Material
Metallic
Probe Length
8.50 in
Sensor Element
10K Type 3 Thermistor
Output
0 - 5 VDC
Power Requirements
24 VAC/VDC
Accessory
HS3XX,DCPA-1.2,DCP-1.5-W,UR
Feature
NIST 2 pt
Application
Humidification,Dehumidification,Supply,Discharge,Return Air,Economizers,Clean Rooms,Data Centers,Process Control,Schools,Hospitals,Office Buildings
Mount
Duct
more information & related documents
Series Description
The Veris HEW, HED, HO, HD & HW Series deluxe humidity transmitters measure relative humidity in all conditions. All devices are equipped with a thin-film capacitive sensor that is replaceable in the field. The wall-mounted HW model featues a low-profile housing with an LCD display.
Kele Description
3% RH DUCT 5/10VDC TEMP 10K 3 THMS NIST 2PT
Manufacturer
Veris
HO HD Datasheet
