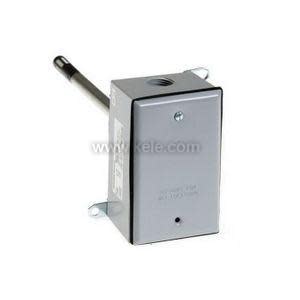

Rectangular grey metal box with a slender black probe extending from one end and a metal bracket for mounting.

HD2XMSTA1 | Veris | Humidity

Relative Humidity Sensor, Duct Mount, ±2%, No NIST Certficate, 4-20 mA, Standard, Humidity Transmitter, -40° to 50°C (-40° to 122°F), No Temperature Certificate

Brand:Veris

MPN:HD2XMSTA1

SKU:HD2XMSTA1

List Price:

$-.--

Today's Price:

$-.--

product datasheet

installation instructions

product specifications

Type

Probe

Accuracy

Housing Material

Metallic

Probe Length

8.50 in

Temperature Range

-40 to 122 °F (-40 to 50 °C)

Output

4 - 20 mA

Power Requirements

24 VAC,24 VDC

Accessory

HS2XX,DCPA-1.2,DCP-1.5-W,UR

Feature

Transmitter

Application

Humidification,Dehumidification,Supply,Discharge,Return Air,Economizers,Clean Rooms,Data Centers,Process Control,Schools,Hospitals,Office Buildings

Mount

Duct

more information & related documents

Series Description

The Veris HEW, HED, HO, HD & HW Series deluxe humidity transmitters measure relative humidity in all conditions. All devices are equipped with a thin-film capacitive sensor that is replaceable in the field. The wall-mounted HW model featues a low-profile housing with an LCD display.

Kele Description

RH Sensor, Duct Mount, ±2%, No NIST Cert, 4-20 mA, Humidity Transmitter, -40 to 122F, No Temp CERT

Manufacturer

Veris
