210697 | Vaisala | Humidity

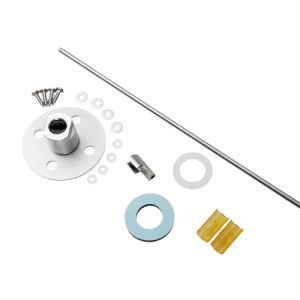

DUCT INSTALLATION KIT FOR HMT333 AND HMT337

Brand:Vaisala

MPN:210697

SKU:210697

List Price:

$365.00

Today's Price:

$189.80

catalog page

product specifications

Type

Accessories

Mount

Duct

product series specifications

Accuracy: ±1.7% RH @ 50° to 104°F (10° to 40°C) from 0 to 90% RH

Stability: ±0.5% RH/year

Supply Voltage:

HMW92: 10 to 28 VDC

HMW93: 18 to 35 VDC, 24 VAC ±20%, 50/60 Hz

Signal Output:

HMW92: 4-20 mA @ 700Ω

HMW93: 0 to 5/10 VDC (dipswitch selectable)

Measurement Range RH: 0 to 100%

Relay Type (93 model only): SPST

Relay Output (93 model only): 50 VAC/VDC @ 0.5 A

Sensing Technology: HUMICAP® 180R

Operating Temperature: 23° to 131°F (-5° to 55°C)

Enclosure Rating: NEMA 1, IP30, UL-V0, ABS/PC

Wiring Terminations: Screw terminals

Dimensions: 5.22"H X 3.19"W X 1.18"D (13.27 X 8.1 X 3.0 cm)

Approvals: CE

Weight: 0.34 lb (0.16 Kg)

Warranty: 2 years

product series features

Easy installation, configuration and field adjustment
±1.7% accuracy
Optional relay (HMW93 only)
NIST calibration certificate included
Long term stability with HUMICAP® 180R sensor

more information & related documents

Series Description

The wall-mounted Vaisala HMW90 Series HUMICAP® humidity and temperature transmitters measure the relative humidity and temperature of indoor environments, where high accuracy, stability, and reliable operation are required. The HMW90 Series includes models for both current and voltage output. These flexible transmitters offer a variety of options and features. Transmitters are available with an optional display. The HMW90 Series humidity transmitters are quick and easy to install. The wiring is connected secured to the wall through the back plate and the electronics with the sensors can then be easily snapped on. Dip switches for transmitter configuration can be accessed when the enclosure is open.

Kele Description

DUCT INSTALLATION KIT FOR HMT333 AND HMT337

Manufacturer

Vaisala
