SRH15PD2CTON | Setra | Humidity
8.5" DUCT HUMIDITY SENSOR 0-10 VDC
Manufacturer:Setra
MPN:SRH15PD2CTON
SKU:SRH15PD2CTON
List Price:
$357.18
Today's Price:
$178.59
product family specifications
Accuracy
5% RH (0-100% RH) @ 73°F (23°C)
Drift
<1% RH/yr @ 73°F (23°C), 50% RH
Supply Voltage
12-30 VDC
Signal Output
4-20 mA, 2-wire
Maximum Output
Impedance
700Ω @ 24 VDC Ω = (supply - 10) / 0.02
Sensing Technology
Replaceable capacitive polymer
Sensor Protection
Porous polyethylene
Protection
Reverse polarity protection
Operating Humidity
0 to100%
Operating Temperature
-40° to 140°F (-40° to 60°C)
Enclosure
Room
ABS plastic (flammability, 94V-0)
Duct/OSA
Polycarbonate (flammability, 94V-0), NEMA 4 (IP65)
Wiring Terminations
Pluggable terminal block
Dimensions
Room 4.7"H x 2.8"W x 1.0”D (12 x 7 x 2.5 cm)
Duct 5.1"L x 2.7"W x 2.4"D (13 x 6.8 x 7 cm) 8.5" (21.6 cm) probe length 1/2" probe Ø
OSA 6.1"L x 4"W x 12.5"D (15.5 x 10 x 32 cm)
Approvals CE, RoHS
Weight
Room
0.5 lb (0.23 kg)
Duct
1.3 lb (0.59 kg)
OSA
2.6 lb (1.2 kg)
Warranty
1 year (sensor) 3 years (electronics only)
product family features
- ±5% RH accuracy
- No recalibration required
- Replaceable sensor
- Capacitive sensor technology
- Reverse polarity protection
more information & related documents

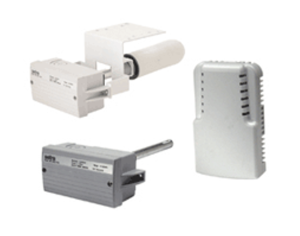

Family Description
Designed for the HVAC control system, the Setra SRH15 Series humidity transmitters offer reliable measurement of RH levels from 0 to 100% with an accuracy of ±5%. Available in wall, duct, and outside air configurations, the SRH Series transmitters are easy to install and service if necessary. The transmitters utilize a field replaceable sensor tip that allows the end user to replace sensors on-site-eliminating factory calibration and downtime.
Kele Description
8.5" DUCT HUMIDITY SENSOR 0-10 VDC
Manufacturer
Setra
