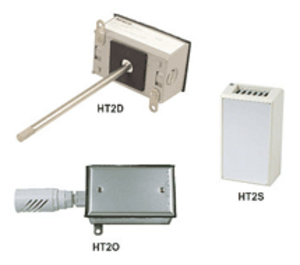

* product series image displayed
HT2D1NT | Minco Products | Humidity
2%DUCTRHXMTR
Brand:Minco Products
MPN:HT2D1NT
SKU:HT2D1NT
product series specifications
- Accuracy:
- Humidity:
- ±2% (5 to 90% RH)
- Temperature:
- ±0.5‚Ñâ (0.27‚ÑÉ)
- Supply Voltage:
- 9.4-35 VDC (24V nominal)
- Signal Output:
- 4-20 mA @ 730Ω
- Measurement Range:
- Humidity:
- 0 to 100% RH
- Temperature:
- ″EN″ Range:
- -20° to 140‚Ñâ (-29° to 60‚ÑÉ)
- ″S″ Range:
- 0° to 100‚Ñâ (-18° to 38‚ÑÉ)
- ″H″ Range:
- 40° to 90‚Ñâ (4° to 32‚ÑÉ)
- Sensing Technology:
- Humidity:
- Capacitive monolithic IC
- Temperature:
- Platinum 1000Ω RTD 385 curve
- Operating Temperature:
- Room:
- -10° to 150‚Ñâ (-23° to 65‚ÑÉ)
- Duct/OSA:
- -10° to 185‚Ñâ (-23° to 85‚ÑÉ)
- Wiring Terminations:
- Nonpolar terminals (22-14 AWG wire)
- Weight:
- Room:
- 0.19 lb (0.09 Kg)
- Duct:
- 1.20 lb (0.55 Kg)
- OSA :
- 1.20 lb (0.55 Kg)
- Warranty:
- 3 years
product series features
- 100% replacement for discontinued Hycal transmitters
- Advanced wall-mount design
- Weather-resistant housing for duct and OSA use
- Dual output option (humidity and temperature)
more information & related documents
Series Description
The Minco Model HT relative humidity transmitters are full-range, high-accuracy building automation transmitters. Model HT covers 0% to 100% RH over a wide temperature. The standard two-wire, 4-20 mA output provides low cost space, duct, and outdoor monitoring for building control.
Kele Description
2%DUCTRHXMTR
Manufacturer
Minco Products
Related Documents
HT2 Installation Sheet
