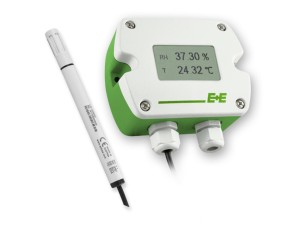

EE210-T13L200J3F2D2 | E+E Elektronik | Humidity

RH/T SENSOR, OUTDOOR, 200 MM CABLE, RS485, MEMBRANE FILTER, BACKLIT DISPLAY

Brand:E+E Elektronik

MPN:EE210-T13L200J3F2D2

SKU:EE210-T13L200J3F2D2

List Price:

$1,861.00

Today's Price:

$967.72

Lead time of > 15 days. Chat with Kele experts now

product series specifications

Measuring range Humidity

0...100% RH

Accuracy Humidity

-15...40 °C <90% RH ±(1.3+0.003*mv) % RH
-15...40 °C >90% RH ±2.3% RH
-40...60 °C ±(1.5+0.015*mv) % RH

Measuring range Temperature

-40...80 °C (-40...176 °F)

Accuracy Temperature

±0.2 °C (0.34°F)

Analogue outputs

0-5/10 V or 4-20 mA

Digital output

BACnet MS/TP or Modbus RTU

Supply

24V AC/DC

product series features

Selectable display layout
Measurands freely selectable
Backlight optional
Knockout for ½" conduit fitting (US)
External mounting holes with closed cover
Protection rating IP65 / NEMA 4X
Electronics protected against construction site pollution
Type T13 compatible with radiation shield H010501
Optimum protection against mechanical damage during installation
Watertight cable outlet

more information & related documents

Series Description

The EE210 humidity (RH) and temperature (T) sensor is designed to meet the highest requirements in demanding climate control applications. Besides the accurate measurement of RH and T EE210 calculates various RH related parameters such as dew point temperature, absolute humidity and mixing ratio. <br>

Kele Description

RH/T SENSOR, OUTDOOR, 200 MM CABLE, RS485, MEMBRANE FILTER, BACKLIT DISPLAY

Manufacturer

E+E Elektronik
