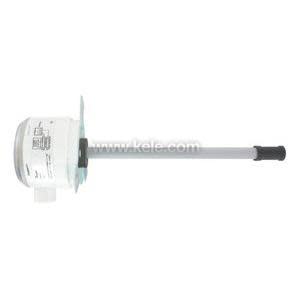

RHP-3D22-LCD | Dwyer Instruments | Humidity
Relative Humidity, Passive Temperature Sensor Transmitter, 3%, Duct Mount with Plastic Hydrophobic Filter, 0-10 VDC RH Output, 0-10 VDC Temperature Sensor, LCD Display
Brand:Dwyer Instruments
MPN:RHP-3D22-LCD
SKU:RHP-3D22-LCD
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Accuracy
3%
Housing Material
Poly
Probe Length
9 in
Output
0 - 10 VDC
Display
LCD
Power Requirements
24 VAC/VDC
Accessory
DCPA-1.2,DCP-1.5-W,UR
Application
Humidification,Dehumidification,Supply,Discharge,Return Air,Economizers,Clean Rooms,Data Centers,Process Control,Schools,Hospitals,Office Buildings
Mount
Duct
product series features
- Robust capacitance humidity sensor
- Models with LCD display
- Interchangeable filter and replaceable sensor options
more information & related documents
Series Description
The Dwyer Series RHP Temperature and Humidity Transmitter combine the voltage or current humidity transmitter output with a passive temperature thermistor or RTD output. The polymer capacitance humidity sensor is not affected by condensation, fog, high humidity, or contaminants. The humidity sensors are available with 2% or 3% accuracies. Duct mounted transmitters are available with an optional two-line alpha numeric LCD display. The Series RHP is available with interchangeable filter options as well as replaceable sensors.
Kele Description
3% DUCT RH/TEMP XMITER DUAL 0-10VDC LCD
Manufacturer
Dwyer Instruments
Related Documents
RHP-D,R,O Installation Manual
