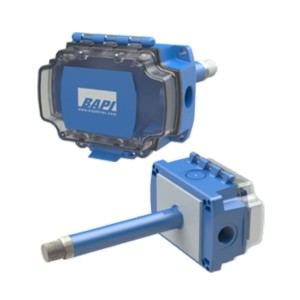

BA/10K-3-H200-D-BB | BAPI | Humidity
10K-3 Thermistor, ±2% Humidity Transmitter with Interchangeable Output of 0 to 5 V or 4 to 20 mA, BAPI-Box
Brand:BAPI
MPN:BA/10K-3-H200-D-BB
SKU:BA/10K3H200DBB
List Price:
$410.00
Today's Price:
$213.20
product specifications
Accessory
DCPA-1.2, DCP-1.5-W, T81U-XR, T85U-XR, UR
Accuracy
±2.00%
Application
Humidification, Dehumidification, Supply, Discharge, Return Air, Economizers, Clean Rooms, Data Centers, Process Control, Schools, Hospitals, Office Buildings
Housing Material
Poly
Housing Rating
NEMA 4, IP66
Sensor Element
10K Type 3 Thermistor
Output Signal
0-5 VDC
Mounting Location
Duct
Power Requirements
24 VAC/VDC
product series specifications
- Accuracy:
- 2% from 20% to 95% RH
- Supply Voltage:
- 15-28 VAC/VDC
- Signal Output:
- 4-20 mA @ 700Ω, 0-5/10 VDC @ 10kΩ min
- Sensing Technology:
- Resistive with ceramic substrate
- Sensor Protection:
- Room:
- Room Gore-TexÆ
- Duct/OSA:
- 80 micron stainless steel sintered filter
- Operating Humidity:
- 0-100%, non-condensing
- Operating Temperature:
- Room:
- 32° to 122°F (0° to 50°C)
- Duct/OSA:
- -40° to 158°F (-40° to 70°C)
- Enclosure Rating:
- Room:
- BAPI stat 4/Delta: NEMA 1, ABS Plastic, UL94V-0
- Duct/OSA:
- BAPIBox (BB):
- NEMA 4, IP66, UV resistant polycarbonate
- BAPIBox II (BB2):
- NEMA 4,IP66, UV resistant polycarbonate
- WP:
- NEMA 3R,Weatherproof, cast aluminum
- Wiring Terminations:
- Four wire, 16 to 22 AWG terminals
- Weight:
- Room:
- 0.25 lb (0.11 Kg)
- OSA/Duct:
- BB/BB2 :
- 1.0 lb (0.45 Kg)
- WP :
- 1.3 lb (0.59 Kg)
- Approvals:
- CE, RoHS
- Warranty:
- 2 years
product series features
- Popular room housing
- 2% Accuracy
- Duct and OSA NEMA 4 housing
- 24 VDC or 24 VAC power (field-selectable)
- 4-20 mA, 0-10V, or 0-5V signal (field-selectable)
- Field calibratable
- Optional temperature sensor available
- Optional room display
- Optional setpoint available
- Optional override button available
more information & related documents
Series Description
The BAPI BA/H200 Series ±2% accuracy humidity transmitters from BAPI are designed specifically for HVAC systems. Room sensors are available in the traditional Delta style enclosure or the new BAPI STAT 4. All Duct Units feature medical-grade closed cell foam to seal the probe insertion hole and to absorb vibration. All Outside Air Units have etched Teflon leadwires and are built to withstand high humidity and condensation and perform under real world conditions. Duct and OSA units are available in weatherproof enclosures selectable from IP66 or NEMA 3R. RH transmitter outputs include 4-20 mA, 0-5V, and 0-10V with replaceable sensor tips.
Kele Description
2% BAPI-STAT II DUCT RH 4-20MA XMTR W/10K3
Manufacturer
BAPI
BAPI Delta Humidity Datasheet
