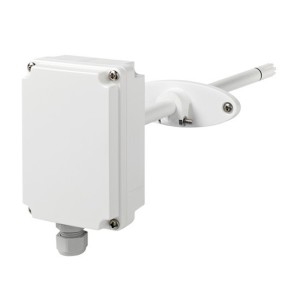

HMD82TD | Vaisala | Humidity
Relative Humidity Transmitter, Duct, Dew Point/Dry Bulb, LCD
Brand:Vaisala
MPN:HMD82TD
SKU:HMD82TD
List Price:
$951.00
Today's Price:
$494.52
product specifications
Accessory
DCPA-1.2, DCP-1.5-W, T81U-XR, T85U-XR, UR
Feature
Dew Point, Dry Bulb
Accuracy
±3.00%
Application
Humidification, Dehumidification, Supply, Discharge, Return Air, Economizers, Clean Rooms, Data Centers, Process Control, Schools, Hospitals, Office Buildings
Housing Material
Poly
Housing Rating
IP65
Probe Length
9.50 in
Sensor Element
1K Platinum RTD 385
Temperature Range
-40 to 140 °F (-40 to 60 °C)
Display
LCD
Output Signal
4-20 mA
Mounting Location
Duct
Power Requirements
24 VAC/VDC
product series specifications
- Accuracy:
- Dew Point, Wet Bulb & Dry Bulb:
- ±1.8‚Ñâ (1.0‚ÑÉ)
- Enthalpy:
- ±2 BTU/lb
- Relative Humidity:
- ±3% RH
- Supply Voltage:
- 10 - 28 VDC
- Signal Output:
- (2, Dry Bulb Temperature & Model Specific) 4-20 mA @ 600Ω
- Measurement Range:
- Dew Point, Wet Bulb & Dry Bulb:
- -40° to 140‚Ñâ (-40° to 60‚ÑÉ)
- Enthalpy:
- -10 to 190 BTU/lb (-40 to 460 kj/hg)
- Relative Humidity:
- 0 to 100%
- Sensing Technology:
- Viasal IntercapÆ
- Operating Temperature:
- -40° to 140‚Ñâ (-40° to 60‚ÑÉ)
- Operating Humidity:
- 0 to 99 % non-condensing
- Dimensions:
- Duct:
- 5.2‚Ä= H x 2.8‚Ä= W x 11.5‚Ä= D (13.1 x 7.2 x 29.1 cm)
- OSA:
- 8.1‚Ä= H x 4.8‚Ä= W x 3.9‚Ä= D (20.7 x 12.2 x 10 cm)
- Room:
- 7.6‚Ä= H x 2.8‚Ä= W x 1.6‚Ä= D (19.3 x 7.2 x 4.1 cm)
- Enclosure rating:
- NEMA 4, IP65
- Approvals:
- CE
- Weight:
- Duct:
- 0.65 lb (0.29 Kg)
- OSA:
- 1.6 lb (0.72 Kg)
- Room:
- 0.25 lb (0.11 Kg)
- Warranty:
- 2 year
product series features
- Dew point, Wet Bulb and Dry Bulb accuracy of ±1.8 degrees F (±1 degrees C) over the specified range
- Enthalpy accuracy of ±2 BTU/lb over specified range
- Two 4-20 mA output signals
- Microprocessor-based signal processing
- Weather resistant duct/OSA mounting
- Temperature compensated
more information & related documents
Series Description
The Vaisala HMX8XD Dew Point, HMX8XW Wet Bulb, and HMX8XH Series Enthalpy Transmitters are rugged, compact, and ideally suited for monitoring dew point, wet bulb, or enthalpy in commercial HVAC/BAS applications. Using a Vaisala Intercap® RH sensor and an RTD temperature sensor, the unit's microprocessor computes the dew point, wet bulb, or enthalpy. Two linear outputs provide a 4-20mA signal for dew point, wet bulb, or enthalpy, and a 4-20 mA signal for dry bulb, temperature.
Kele Description
DUCT DEW POINT/DRY BULB XMTR
Manufacturer
Vaisala
Related Documents
HMD-S-W8XD-H-W Datasheet
