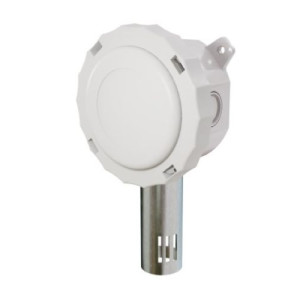

BN2130-O | ACI | Humidity
BACnet MS/TP, Modbus RTU, Relative Humidity and Temperature, Outside, Euro Enclosure
Brand:ACI
MPN:BN2130-O
SKU:BN2130-O
List Price:
$510.00
Today's Price:
$265.20
Log in for customized pricingproduct specifications
Type
OSA
Display
No
product series specifications
Supply voltage: 12 to 36 VDC / 24 VAC
Temperature Measurement Range: -40 to 176F (-40 to 80C)
RH Measurement Range: 0 to 100%
RH Measurement Accuracy @ 77F (25C): +/- 2% from 10 to 90% RH
Communication Protocol: BACnet MS/TP or Modbus RTU = Field Selectable; EIR RS-485
Maximum Distance: 4000ft (1219 m)product series features
- Offers both BACnet and Modbus protocols in one device
- Waterproof Enclosure
- Twist off cover for easy access to wiring.
more information & related documents
Series Description
The BN Series Outdoor Temperature and Humidity networked sensors are a cost effective, single or dual point native BACnet or Modbus sensing solution designed to reduce the need for additional input modules or building management controllers when a limited number of input points are available. The BN series offers both BACnet and Modbus protocols in one device, providing great flexibility with various systems. The BTL Certification provides confidence that these sensors may be used in any new or retrofit installation using a BACnet MS/TP controller with third party BACnet devices. These sensors incorporate a conformally coated printed circuit board mounted inside a waterproof enclosure for long-term reliability. The enclosure features a twist off cover for easy access to the wiring and internal dip switches for quick setup and installation. Please contact ACI for more information regarding the BN Series communicating sensors.
Kele Description
OUTSIDE AIR TEMP/HUMIDITY XMTR W/ BACNET/MODBUS
Manufacturer
ACI
Related Documents
BN21 OUTSIDE AIR info page
