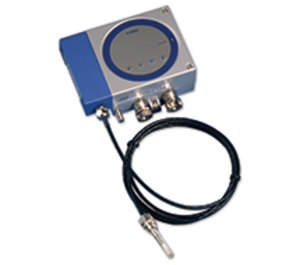

* product series image displayed

HMT3604DUCT | Vaisala | Hazardous Locations

IS DUCT RH AND TEMP XMTR

Brand:Vaisala

MPN:HMT3604DUCT

SKU:HMT3604DUCT

List Price:

$-.--

Today's Price:

$-.--

catalog page

product specifications

Range

40 to 176 °F

Type

Transmitter

Output

4 - 20 mA

Input

24 VDC

Mount

Duct

product series specifications

Supply Voltage: 12-28 VDC

Configuration: (2) Two-wire loop powered

Output: 4-20 mA

Accuracy: ±1.5% + 0.015 x reading

Measurement Range:

RH: 0 to 100%

Temperature:

Wall: -40° to 140°F (-40° to 60°C)

Duct: -40° to 176°F (-40° to 80°C)

Entity Parameters: Vmax: 28V; Imax: 100 mA; Ci: 1nF; Li: 0 mH

Operating Temperature:

Transmitter: -40° to 140°F (-40° to 60°C)

Duct Probe: -40° to 240°F (-40° to 120°C)

Operating Humidity: 0% to 100% non-condensing

Wiring terminations: terminals (14-22 AWG)

Dimensions:

Wall: 9.5" H X 6.5" W X 2.5" D (24.2 x 16.4 x 6.2 cm)

Duct (base): 4.5" H x 6.5" W x 2.5" D (11.5 x 16.4 x 6.2 cm)

Probe (duct): 6.7" (17) long x 0.47" (1.2) diameter with 6.5' (2m) whip

Approvals: FM approved, CSA

Weight:

Wall: 2.8 lb (1.25 Kg)

Duct: 3.1 lb (1.4 Kg)

Warranty: 2 year

product series features

Class I,II,III Division 1, Groups A, B, C, D, E, F, G; Division 2 Groups Groups A, B, C, D, F, G
Two outputs (Relative Humidity and temperature)
FM approved

more information & related documents

Series Description

The Vaisala HMT360 Series intrinsically safe wall and duct transmitters provides an accurate 4-20 mA output of relative humidity and temperature. When coupled with a Model MTL7706+ Safety Barrier and appropriate cabling, the HMT360 Series is suitable for use in hazardous locations without use of explosion proof enclosure.

Kele Description

IS DUCT RH AND TEMP XMTR

Manufacturer

Vaisala
