TTE-109-W
* product family image displayed

TTE-109-W | Dwyer Instruments | Hazardous Locations

XP 9IN PROBE DUCT TEMP

Manufacturer:Dwyer Instruments

MPN:TTE-109-W

SKU:TTE-109-W

List Price:

1,224.00

Today's Price:

685.44



USD
Availability: Lead time > 15 days. See alternatives below or chat with Sales.
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

add to cart

arrow

product family specifications

Supply Voltage

10-35 VDC

Accuracy

±0.1 of span

Rangeability

-30° to 250℉ (-34° to 121℃) with minum span of 40℉ (4.4℃); factory set at 40° to 90℉ (4.4° to 32℃)

Output Signal

4-20 mA @ 700 Ω

Enclosure Rating

NEMA 4X, Class I, Div 1, Groups B,C,D; Class II, Div 1, Groups E,F,G; Class II

Mounting

Mounting hardware pipe/wall (A-287)

Operating Temperature

Ambient: 0° to 158℉ (-18° to 70℃)

Probe Material

315 Stainless steel

Pressure

2000 psi (13,789 kPA)

Dimensions

4.24" H x 3.9" W x 10.4" D (10.8 x 9.9 x 26.9 cm)

Process Coneection

1/2: MNPT

Weight

not to exceed 3.1 lb (1.4 Kg)

Approvals

CE, FM

Warranty

1 year

product family features

  • Class I, Division 1, Groups B, C, D
  • Class II, Division 1, Groups E, F, G, Class III
  • NEMA 4X, 7BCD, 9EFG
  • Available in 1000Ω RTD
  • 4-20 mA loop powered
  • FM approved
  • Multiple ranbes available per dip switches
  • Field selectable ranges

more information & related documents

Family Description

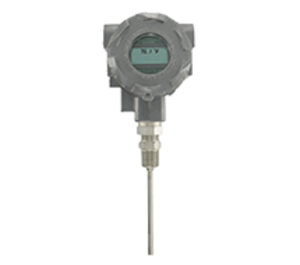

The Dwyer Model TTE Explosion Proof Platinum RTD Transmitter is designed for temperature measurement in applications calling for a rugged industrial housing.

Kele Description

XP 9IN PROBE DUCT TEMP

Manufacturer

Dwyer Instruments

Related Documents
