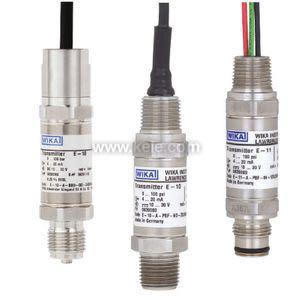

Three cylindrical pressure transmitter devices made of metal, each having a threaded base and electrical wires protruding from the top.

4365050 | Wika Instrument Corporation | Hazardous Locations

Explosion-protected Pressure 0-100psi 4-20mA

Brand:Wika Instrument Corporation

MPN:4365050

SKU:E10APBFNDZ2X67Z

List Price:

$988.00

Today's Price:

$513.76

product datasheet

installation instructions

catalog page

Lead time of 14 days. Chat with Kele experts now

product specifications

Measurement

PSI

Range

0 - 100 psi

Type

Transmitter

Output

4 - 20 mA

product series specifications

Supply Voltage: 10-30 VDC

Accuracy: ±0.25% full scale

Output: 4-20 mA @ 700 Ω

Overpressure: Proof 170%, Burst 580%

Operating Temperature: -22° to 212°F (-30° to 100°C)

Response time: ≤1 ms

Material of Construction: Stainless Steel

Process Connection: 1/2" NPT male

Area: Class I, Division 1, Groups A, B, C, D

Entity Parameters: Vmax = 30VDC, Imax = 100 mA, Ci= 22 nF, Li = 0.1 mH

Dimensions: 4.1" Long x 1.1" Diameter (10.5 x 2.7 cm) with 6' (1.8 m) whip

Approvals: FM, CSA

Weight: 1.0 lb (0.45 kg)

Warranty: 1 year

product series features

Class I, Division 1, Groups A, B,C, D;
0.25% accuracy, all ranges
4-20 mA, loop powered
Ranges from 100-3000 psig (690-20,685 kPa)

more information & related documents

Series Description

The Wika E10A Series explosion proof pressure transmitter is exceptionally stable and is virtually unaffected by shock, vibration, or orientation. These explosion proof transmitters are ideal for monitoring pressures in explosive atmospheres.

Kele Description

XP PRESSURE 0-100PSI 4-20MA

Manufacturer

Wika Instrument Corporation
