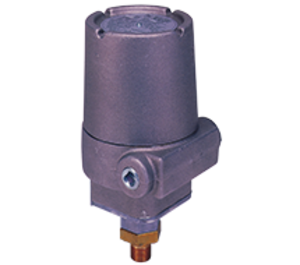

EPS40EXP | System Sensor | Hazardous Locations
XP PROOF PRESS SWITCH 10 TO 100 PSI
Brand:System Sensor
MPN:EPS40EXP
SKU:EPS40EXP
product specifications
Measurement
PSI
Type
Transmitter
Enclosure Rating
NEMA 4X
product series specifications
Contact Arrangement: SPDT
Contact Rating: (2) 10 A @ 125/250 VAC; 2.5 A @ 24 VDC
Setpoint Range:
10: 4 to 20 psi
40: 10 to 100 psi
120: 10 to 200 psi
Differential: 3 psi
Area: Explosion proof Class I, Division 1, Groups B, C, D; Class II, Division 1, Groups E, F, G; Class III, Division 1
Operating Temperature: -40° to 160°F (-40° to 71°C)
Process Connection: 1/2" NPT male
Conduit Connection: Two 1/2" female
Enclosure: NEMA 4
Maximum Static Pressure: 250 psi
Dimensions: 9.5" L x 4.9" dia (24.1 x 12.4 cm)
Approvals: FM, UL file E200116
Weight: 6.2 lb (2.8 Kg)
Warranty: 3 year
product series features
- Two SPDT relays
- NEMA 4
- Class 1, Division 1 Groups B, C, D; Class II, Division 1 Groups E, F, G; Class III, Division 1
more information & related documents
Series Description
The System Sensor EPS Series explosion proof pressure switch is made to measure air or water in a hazardous area and switch two SPDT relays. The set point is field adjustable.
Kele Description
XP PROOF PRESS SWITCH 10 TO 100 PSI
Manufacturer
System Sensor
Related Documents
EPS40 120 Installation manual
