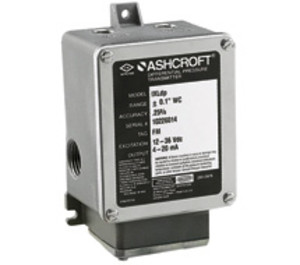

IX3F4SP25IWLXFM | Ashcroft, Inc | Hazardous Locations
IS DP TRANSMITTER -0.25IN TO 0.25IN WC 0.25%
Brand:Ashcroft, Inc
MPN:IX3F4SP25IWLXFM
SKU:IX3F4SP25IWLXFM
List Price:
$2,795.00
Today's Price:
$1,453.40
product specifications
Accuracy
0.25%
Housing Material
Stainless Steal
Housing Rating
NEMA 4X
Range
±0.25 in WC
Type
Transmitter
product series specifications
- Supply Voltage:
- 12-36 VDC
- Accuracy:
- 0.25 % or 0.5%
- Signal Output:
- 4-20 mA @ 545Ω
- Area:
- Intrinsically Safe Class I, II, III;Div 1 and 2, Groups A through G Non-incendive Class I, Div 2, Groups A through D; Class II, Div 2, Groups F, G, Class III
- Enitiy Parameters :
- Vmax=30V, Imax=100mA, Po=1 W, Ci=50nf, Li=0µh
- Response Time:
- 250 ms
- Operating Temperature:
- -20° to 185‚Ñâ (-29° to 85‚ÑÉ)
- Conduit Connection:
- Two 1/2" female
- Process Connection:
- Two 1/4" NPT female
- Enclosure Rating:
- NEMA 4X
- Static Pressure:
- 100 psig max.
- Media:
- Clean, dry, noncorrosive gas
- Proof Pressure:
- 20 psid
- Burst pressure:
- 50 psid
- Weight:
- 2 lb (0.9 Kg)
- Aprovals:
- FM
- Warranty:
- 1 year
product series features
- 100 psig static line pressure
- 0.25% or 0.5% accuracy down to 0.05 in.W.C. in.
- Uni-directional or bidirectional ranges
- 300 Series cast stainless steel body
- NEMA 4X
- NIST certificate included
more information & related documents
Series Description
The Ashcroft Model IXLdp (XFM option) is an intrinsically safe, industrial-quality, differential pressure transmitter for use on air and other noncorrosive gases. The Model IXLdp is available with accuracies of 0.25% and 0.50% in pressure ranges of 0.1 in.W.C. to 200 in.W.C. uni-directional or bi-directional.
Kele Description
IS DP TRANSMITTER -0.25IN TO 0.25IN WC 0.25%
Manufacturer
Ashcroft, Inc
