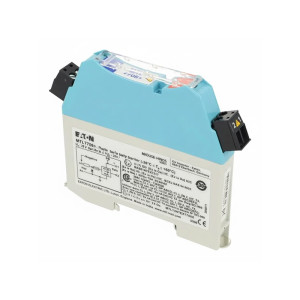

MTL5511

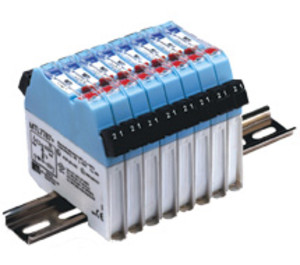

* product series image displayed

MTL5511 | Cooper Crouse-Hinds MTL | Hazardous Locations

IS BARRIER FOR DRY CONTACTS

Brand:Cooper Crouse-Hinds MTL

MPN:MTL5511

SKU:MTL5511

List Price:

$1,378.34

Today's Price:

$716.74



Availability: Usually Ships in Less Than 13 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Mount

DIN-Rail

Output

4-20 MA

Type

Safety Barrier

Input

24 VDC

product series specifications

    Supply Current:
  • 45 mA typical @ 20 mAl with 24 VDC supply; 60 mA maximum @ 20 mA with a 20 VCD supply
    Supply Voltage:
  • 20-35 VDC
    Accuracy:
  • 2
    Maximum Safe Area Voltage:
  • 250 VAC/VDC
    Safe Area Load:
  • 500Œ© maximum
    Transmitter:
  • 16 VDC minimum @ 20 mA with 250Œ© load; 11 VDC @ 20 mA with 500Œ© load

product series features

  • FM entity approval Class I, II, and III, Division 1, Groups A, B, C, D, E, F, G
  • BASEEFA approval EEx ia, IIC
  • DIN rail mounting with integral intrinsic safety ground
  • Compact size

more information & related documents

Series Description

The MTL7000, MTL7700 and MTL5000 Series of ultra-slim intrinsic safety barriers is the worldwide standard in protection and accuracy for intrinsically safe sensing and controlling devices in hazardous locations. Each intrinsically safe barrier limits the amount of electrical energy that can be transmitted into the hazardous area to a level below the ignition energy of even the worst-case explosive mixture of fuel and air. The safety barrier protection remains intact even in the event of two simultaneous faults, thus providing the highest possible safety rating for this type of system. All MTL7000, MTL7700 and MTL5000 Series barriers are FM approved for use in intrinsically safe systems under the entity concept and can thus be applied with the widest possible array of intrinsically safe devices. Designed for ease of installation, these barriers provide a positive intrinsic safety ground through the DIN rail. These safety barriers are proven performers in building automation systems, BAS, and HVAC applications. Isolating spacers are available for applications in which the intrinsic safety ground must be separate from the mounting panel's earth ground (ANSI / ISA RP-12.6 specifies grounding requirements).

Kele Description

IS BARRIER FOR DRY CONTACTS

Manufacturer

Cooper Crouse-Hinds MTL
