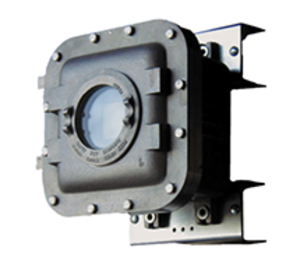

SDI77XL2EXOUT | Protech/Protection Technologies | Hazardous Locations

OUTDOOR 100 FT. X 40 FT. DC POWER COMPLETE CONFORMAL COATING, 4 PROM, 12VDC

Brand:Protech/Protection Technologies

MPN:SDI77XL2EXOUT

SKU:SDI77XL2EXOUT

List Price:

$11,265.00

Today's Price:

$5,857.80

catalog page

Lead time of 10 days. Chat with Kele experts now

product specifications

Type

Motion Detector

Enclosure Rating

NEMA 4X

Input

12 VDC

Mount

Outdoor

product series specifications

Supply Voltage: 24 VDC @ 75 mA, 24 VAC @ 1.8 VA (model specific)

Contact Rating: 0.1 A @ 50VAC, NC, NO contacts (extra NC for housing tampering)

Coverage Pattern: 100' x 40' (30 x 13 m)

Operating Temperature: -30° to 130°F (-34° to 54°C)

Operating Humidity: 0 to 99%, non-condensing

Dimensions: 11.9" H x 11.9" W x 8.7" D (27.9 x 27.9 x 22.1 cm)

Weight: 40 lb (18.1 Kg)

Warranty: 1 year

product series features

Class I, Div. 1 and 2, Groups C,D;Class II, Div. 1 and 2, Groups E,F,G;Class III;NEMA 7CD, 9EFG
Stereo Doppler technology
Adjustable unit sensitivity
LED indicator

more information & related documents

Series Description

The SDI-77XL2-EX Model of Stereo Doppler Explosion Proof Motion Detector was developed to protect Hazardous Locations due to the presence of flammable gasses or vapors, combustible dusts or easily ignitable fibers or flyings. The SDI-77XL2-EX electronic assembly is configured to be easily inserted into a special explosion-proof enclosure. The unit is suitable for applications in Hazardous Locations under the following classifications: Class I, Div. 1 and 2, Groups C,D;Class II, Div. 1 and 2, Groups E,F,G;Class III;NEMA 7CD, 9EFG

Kele Description

EXPLOSION PROOF MOTION OUTDOOR 12VDC

Manufacturer

Protech/Protection Technologies
