SVIP3729

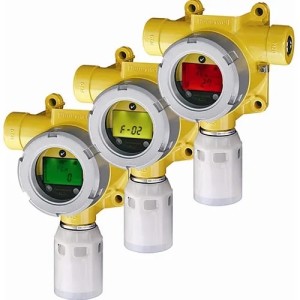

* product family image displayed

SVIP3729 | Honeywell Analytics | Hazardous Locations

COMBUSTIBLE (C3H8) XMTR 4-20MA 3 RLY MODBUS

Manufacturer:Honeywell Analytics

MPN:SVIP3729

SKU:SVIP3729

List Price:

$6,311.27

Today's Price:

$3,281.86



Availability: Lead time > 15 days. See alternatives below or chat with Sales.
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

view catalog page

product family specifications

Supply Voltage

16 to 32 VDC @ 208.3 mA

Operating Temperature

-40° to 149℉ (-40° to 65℃)

Conduit Connection

2 x 3/4" NPT

Enclosure Rating

NEMA 4, IP66; Housing: Epoxy painted aluminum alloy LM25; Sensor: stainless steel

Mounting

Integral mounting plate with 4 x mounting holes suitable for M8 bolts

Communication

RS485, MODBUS RTU

Inrush Current

800 mA @ 24 VDC maximum

Output Current

4 - 20 mA sink or source

Relay Output

3 x 5A@250VAC. Selectable normally open or normally closed (switch) and energized/de-energized (programmable). Alarm relays default normally open/de-energized. Fault relay default normally open/energized

Terminals

15 x screw terminals

Wire Size

20 to 14 AWG

Dimensions

8.9″H x 6.5″W x 3.9″D (2.25 x 16.4 x 9.9 cm)

Weight

4.4 lb (2 Kg)

Approvals UL File #E186567, CE

Warranty

1 Year

product family features

  • User friendly and intuitive tri-colored backlit display with digits, bar graph, and icons
  • Fully configurable via magnetic switches
  • Selectable sink or source 4-20 mA output
  • Built in Alarm and Fault relays
  • MODBUS communications for remote diagnostics/configuration
  • Removable plug in display module provides easy access to terminal area
  • Integral mounting bracket
  • 2 x M20 or 3/4" NPT cable/conduit entries
  • Epoxy painted aluminum alloy housing
  • Class I, Division 1 Groups B, C, and D; Class I, Division 2, Groups B, C, and D; Class II, Division 1 Groups E, F, and G; Class II, Division 2, Groups F and G

more information & related documents

Family Description

The Honeywell Analytics XCD Series explosion proof gas monitor/transmitter provides comprehensive monitoring of flammmable, toxic, and oxygen gas hazards in potentially explosive atmospheres. Users can modify detector operation using the LCD and magnet switches without ever needing to open the unit. This enables one-man, non-intrusive operation and reduces routine maintenance time and costs. The XCD series is suitable for both indoor and outdoor use.

Kele Description

COMBUSTIBLE (C3H8) XMTR 4-20MA 3 RLY MODBUS

Manufacturer

Honeywell Analytics

Related Documents

PDF - SPXCD Manual.pdf SPXCD Manual
