OPT-CAT-BNN | Honeywell Analytics | Hazardous Locations

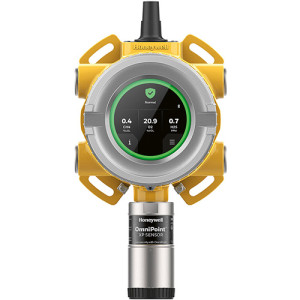

Honeywell OmniPoint Universal Gas Detection Transmitter: (3) 4/20 mA output, (3) 5A SPDT alarms, (1) 5A SPDT fault relay. Communications: Bluetooth 5.0 NEMA 4X|IP66|IP67 rated Aluminumenclosure with (5) 3/4" NPTcable entries, 3 IN TFT Display with Ring IndicatorUL, cUL, CSA, ATEX Approvals. 5-Year Standard Warranty. Ships with quick reference guide, M22 plug or BLE, three 3/4-In NPT or M25 plugs, three terminal blocks, calibration cap, screwdriver, Allen wrench.
Brand:Honeywell Analytics
MPN:OPT-CAT-BNN
SKU:OPT-CAT-BNN
List Price:
$3,500.00
Today's Price:
$1,820.00
Log in for customized pricingproduct specifications
Communication Protocol
Bluetooth
Material
Aluminum
Warranty
5 Year
Output
(3) 4/20 mA output, (3) 5A SPDT alarms, (1) 5A SPDT fault relay
Display
3 IN TFT Display with Ring Indicator
Enclosure Rating
NEMA 4X,IP66,IP67
Approvals
UL,cUL,CSA,ATEX
Hazardous Location Rating
Class I, Div 1, Groups A-D,Class II, Div 1, Groups E-F
Application
Oil and Gas,Wastewater Treatment,Refineries,Chemical Plants,Power Generation,Pharmaceuticals
product series features
- Accepts IR Point (Honeywell Optima), XP (catalytic bead and IR), and XPIS (electrochemical cell sensors) and supports any sensor without swapping electronics module
- Touchscreen shows each sensor's status with real-time gas readings and event history data (no fault codes to translate); No magnet required for programming
- LED ring displays green for normal status, yellow for faults, red for alarms, and blue for Bluetooth pairing
- Optional Android Bluetooth app simplifies installation, commissioning, and maintenance
- US, Canada, and European approvals standard: ATEX, UL, and CSA, for use in Zone 1, Class I, Division 1 hazardous locations
- Integral 4-point mounting on the IP66/IP67-rated aluminum alloy or stainless steel enclosure allows for easy wall or pipe mounting
- Accessories include pipe mounting kit, flow housing, calibration adapter, sun shield, weatherproof housing, and junction boxes
- Every transmitter ships with quick reference guide, M22 plug or BLE, three 3/4-In NPT or M25 plugs, three terminal blocks, calibration cap, screwdriver, Allen wrench.
more information & related documents
Series Description
Honeywell OmniPoint is based on a modular design, so a single, easy-to-install transmitter supports multiple sensor types. Calibration and maintenance can be carried out via Bluetooth, HART, or Modbus interfaces or the integrated user interface; and the touchscreen can be used even while workers are wearing thick industrial gloves. The device's status is clearly displayed and can be easily seen from a distance thanks to the LED ring. A free mobile app lets you interact with the detector remotely.
Kele Description
OMNIPOINT GAS XMTR, ALUM, 3/4-IN NPT, BLE. 3X4/20 MA, 3XSPDT ALARMS, 1XSPDT FAULT RELAY
Manufacturer
Honeywell Analytics
Honeywell-Omnipoint-qsg-3021M5001rA-2025-01
