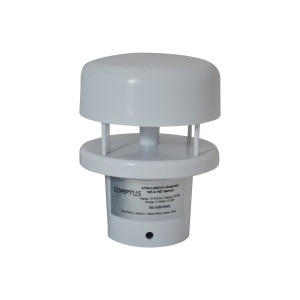

Compact white ultrasonic wind sensor shaped like a small cylinder with a wide cap.

A70H-USDC/S | Comptus | Gas & Specialty Sensors

ULTRASONIC WIND SPEED DIRECTION, COMPACT, SDI12 OUTPUT

Brand:Comptus

MPN:A70H-USDC/S

SKU:A70H-USDC/S

List Price:

$1,366.00

Today's Price:

$710.32

product datasheet

Lead time of 8 days. Chat with Kele experts now

product specifications

Display

Application

Energy Management,Stadiums,Transportation,Emergency,Research Labs,Agriculture

product series specifications

Power Supply: 12-24VDC

Power Consumption: 24V@60mA

Output Signal: RS232/RS485(Modbus/NMEA-0183), 0-5V, 4-20mA

Operating Temperature: -30° to 70°C

Ingress Protection: IP65/NEMA4

Heating Power (optional): 3W

Electronic Compass: Optional

Atmospheric Pressure: Optional (150-1100 hPa)

Dimensions: 145mm x 38mm

Weight (unpacked): 0.8 kg

Main Material: ABS Engineering Plastic

Range: Wind Speed: 0-45m/s, 0-60m/s, Wind Direction: 0-360°

Resolution: Wind Speed: 0.01m/s, Wind Direction: 1°

Accuracy: Wind Speed: <=10m/s: ±0.2m/s, >10m/s, <±2% of the current value

Starting Threshold: Wind Speed: 0.1m/s, Wind Direction: 0.1m/s

Maximum Wind Speed: 60m/s

more information & related documents

Series Description

The Comptus A70H-USD1 Series is a lightweight, economical, high-precision wind speed and direction sensor designed for meteorological, research, industry, aviation, environmental, oceanographic, agricultural and transportation monitoring.

Kele Description

ULTRASONIC WIND SPEED DIRECTION SENSOR, COMPACT, SDI12 OUTPUT

Manufacturer

Comptus
