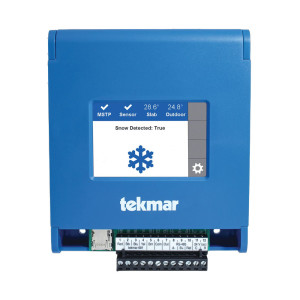

681 | Tekmar Control Systems | Gas & Specialty Sensors

SNOW/ICE SENSOR INTERFACE, BACNET MS/TP

Brand:Tekmar Control Systems

MPN:681

SKU:681

List Price:

$2,669.00

Today's Price:

$1,387.88

catalog page

Lead time of 8 days. Chat with Kele experts now

product series specifications

Supply Voltage: 24 VAC @ 12 VA

Output: Resistance

Wiring Terminations: 65' (20 m) 18 AWG, 5 conductor

Operating Temperature: -30° to 170°F (-34° to 77°C)

Dimensions:

Sensor: 3.4" Dia. x 1.8"D (8.7 x 4.5 cm)

Socket: 3.5" Dia. x 3.8"D (7.9 x 9.7 cm)

Approvals: CE

Weight: Sensor: 4.4 lbs. (2 kg), Socket: 1.5 lbs. (0.7 Kg)

Warranty: 2 years

product series features

Mounts in Slab
Long cable 65 ft. (20 m) no need for splicing

more information & related documents

Series Description

The Tekmar Control Systems T09X Series Snow/Ice Sensor provides reliable snow and ice detection and control for commercial applications. The T090 sensor is designed to be mounted in the T091 socket and sit flush with the slab. The sensor measures the slab temperature, surface temperature and sensor surface moisture level.

Kele Description

SNOW/ICE SENSOR INTERFACE, BACNET MS/TP

Manufacturer

Tekmar Control Systems
