C44-V2SD-N4PC | Comptus | Gas & Specialty Sensors

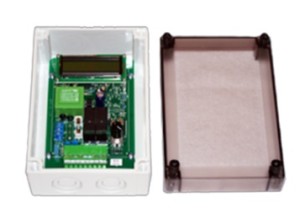

ENVIRONMENTAL SENSOR CONTROLLER, WIND SPEED/DIRECTION, 4X ENCLOSURE

Brand:Comptus

MPN:C44-V2SD-N4PC

SKU:C44-V2SD-N4PC

List Price:

$2,300.00

Today's Price:

$1,196.00

Lead time of 2 days. Chat with Kele experts now

product series specifications

Operating power: 12VDC; 100-240VAC or 277VAC; 50/60Hz

Operating temperature: -20 to 70°C (electronics); -40 to 80°C (sensors)

Display: 16 x 2 RGB LCD screen

Input device: Rotary encoder with push button

Conductors: Barrier strips to accept AWG #12-20 stranded wire

Relay contact rating:

Resistive AC load: 10A @ 250VAC
Resistive DC load: 5A @ 30VDC

Wind speed sensor: Anemometer resolution ±1 unit

Wind speed units available: Miles/hour, meters/second, kilometers/hour, feet/second

Minimum wind speed: 1 meter/second

Wind direction sensor: Vane resolution ±1°

Wind direction units available: Degrees or cardinal points (16)

Wind direction range: 3° to 357° (5° dead band at 0°)

Sensor(s), cable(s), and sensor mounting hardware included.

Subpanel mounting standard; Optional NEMA 4X Polycarbonate enclosure available.

more information & related documents

Series Description

The Comptus C44 two setpoint Wind Alarm is great for agriculture and environmental applications. The ability to detect wind speed and direction of the two-alarm relay device has on-board temperature and humidity sensors. Perfect for BAS, environmental applications, growth facilities and more!

Kele Description

ENVIRONMENTAL SENSOR CONTROLLER, WIND SPEED/DIRECTION, 4X ENCLOSURE

Manufacturer

Comptus
