GBC-6-24 | Macurco | Gas & Specialty Sensors
GAS BOILER CONTROLLER, 24VAC/VDC, 6 RELAYS, NEMA 4X
Brand:Macurco
MPN:GBC-6-24
SKU:GBC-6-24
List Price:
$2,364.00
Today's Price:
$1,229.28
Log in for customized pricingproduct specifications
Measurement Range
0 - 200 ppm
Display
No
Application
Boiler,Furnace,Gas Boiler Controller,Temperature Regulation,Safety Monitoring,Efficiency Optimization,Remote Monitoring and Control,Integration with Building Management Systems
Output Signal
Voltage
product series specifications
Size: 9.8" x 8" x 4.5" (24.9 x 20.3 x 11.4 cm)
Weight: 3 lbs.
Voltage/Current: 24 VAC/VDC or 120VAC
Operating Temperature: 32°F to 125°F (0°C to 52°C)
Ambient Humidity: 0% to 95% RH non-condensing
Mounting: 6 mounting holes
Buzzer: 90 dBA at 1 ft
Status Indicators: Green Light – Powered Up / Red Light – Alarm Condition
Outputs: Relay Expansion Board – 2 SPDT, 250VAC, 10 A Max (resistive), 4 expansion board capacity (8 total relays)
Enclosure: NEMA 4X/6P (IP66/68)
product series features
- Shutdown up to 8 boilers individually via expansion relays
- Customize up to 8 10A SPDT Relays (sets of 2)
- Customize up to 4 expansion relay boards
- 24VDC driver for horn/strobe
- Opaque Polycarbonate, NEMA 4X/6P (IP66/68)
- Audible Buzzer
- Output power supports up to 4 detectors
- 24V or 120V options
more information & related documents
Series Description

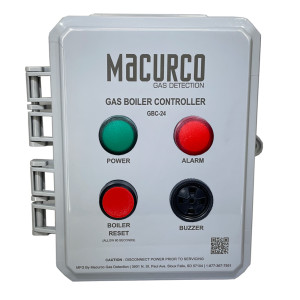

The Gas Boiler Controller used in conjunction with Macurco Gas detectors is used to shut down boilers in the presence of gas. Using a single detector or up to four gas detectors the controller can control up to 8 dry contact outputs. These outputs are designed to shut down the boiler system upon the detection of carbon monoxide and/or combustible gases such as natural gas or propane. If the detectors are programmed in latching mode then utilizing the Gas Boiler Controller you can reset the power to disengage the latched relay. The Gas Boiler Controller has a green power light, a red alarm light, a boiler reset button, and an audible buzzer.
Kele Description
GAS BOILER CONTROLLER, 24VAC/VDC, 6 RELAYS, NEMA 4X
Manufacturer
Macurco
Gas Boiler Controller Datasheet
