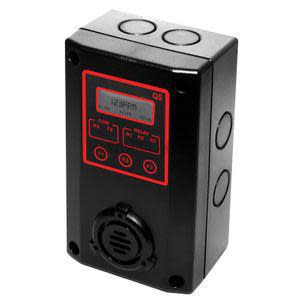

Q5-CH4-100L-0-X | ACI | Gas & Specialty Sensors
Methane, Catalytic Bead, 0-100% LEL
Brand:ACI
MPN:Q5-CH4-100L-0-X
SKU:Q5CH4100L0X
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Output
4 - 20 mA,2 - 10 VDC
Measurement Range
0 - 100% LEL
Display
Yes
Application
Industrial Site,Oil & Gas,Laboratory,Agriculture,Transportation,Mining
product series specifications
Supply Voltage: 15 to 24 VAC @ 7.2 VA; 18 to 30 VDC @ 300 mA
Communication: RS-485: Modbus, BacNet MS/TP
Signal Output: 4-20mA @ 0%, 1-5 VDC, 2-10 VDC
Measurement Range:
CO: 0-250 ppm
O2: 0 to 25%
H2S: 0 to 100 ppm
NH3: 0 to 1000 ppm
H2: 0 to 100% L.E.L.
SO2: 0 to 6 ppm
Sensing Technology:
CO, O2, H2S, NH3, SO2: Electrochemical
H2: Catalytic bead
Life Expectancy: 2-3 years
Display: Backlit LCD and (5) LEDs
Relay Output: (3) SPDT, 1 A @ 30 VDC
Alarm Auditory Levels [Db]: 80 dBA at 3 ft (1m)
Operating Humidity: 5% to 95% RH, noncondensing
Operating Temperature: -40° to 158°F (-40° to 70°C)
Dimensions: 5.9"H x 3.5"W x 2.6"D (15 x 8.9 x 6.6 cm)
Weight: Wall: 1.0 lbs (0.45 Kg), Duct: 1.2 lb (0.54 Kg)
Warranty: 1 year
product series features
- Modbus or BacNet MS/TP compatible
- Built-in 80 dBA buzzer
- Wide variety of gases detected
- Backlite LCD display
- (3) SPDT relay output
- LED status indication
- Password protection
- Optional Duct mount
more information & related documents
Series Description
The ACI Q5 & B5 Series: Network Compatible Gas Detectors - are microprocessor-based smart gas transmitters that are paired with either an electrochemical gas sensor for toxic gases, or a catalytic bead sensor for combustible gases. The user can select from numerous display options including relay status, time, concentration, other data, or nothing at all. All programming and calibration is nonproprietary, and is accessed through a user selectable password that protects system integrity.
Kele Description
METHANE, CATALYTIC BEAD, 0-100% LEL
Manufacturer
ACI
Related Documents
Q5_B5 Data Sheet
