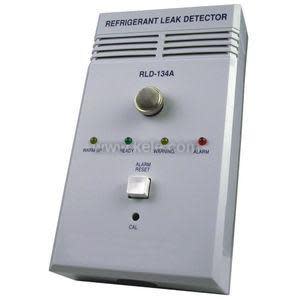

RLD-134A

RLD-134A | Kele | Gas & Specialty Sensors

Refrigerant Gas Sensor, R134A, 0-1000 PPM, Field Selectable Output, 1 Relay, No LCD, Plastic Enclosure, No Rating

Brand:Kele

MPN:RLD-134A

SKU:RLD-134A

List Price:

$2,390.00

Today's Price:

$1,242.80



Availability: 1 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

catalog page

product specifications

Type

Accessory

product series specifications

    Supply Voltage:
  • 24 VAC ±10% @ 14 VA or 24 VDC ±10% @ 580 mA
    Signal Output:
  • 4-20 mA, 0-5 VDC, 0-10 VDC, 1-6 VDC (jumper selectable)
    Maximum Output Impedance mA:
  • 300Œ© maximum
    Minimum Output Impedance VDC:
  • 5 kŒ© minimum
    Accuracy:
  • ±5%; Long term drift 8%
    Measurement Range:
  • 0-1000 ppm
    Relay Output:
  • SPDT 0.5A 24 VAC/VDC Manual reset (latched) Auto reset (unlatched) (jumper selectable)
    Relay Setpoint:
  • Adjustable 0-1000 ppm
    Factory set 500 ppm:
    Relay Time Delay:
  • 15 min., 30 min., 1 hr, 2 hr (jumper selectable)
    Operating Humidity:
  • 10% to 95% non-condensing
    Operating Temperature:
  • 32° to 158°F (0° to 70°C)
    Weight :
  • 1.5 lb (0.45 kg)
    Warranty:
  • 1 year

product series features

  • R-134A detection
  • Selectable analog output
  • LED status indication
  • Alarm relay output
  • Field-replaceable sensor
  • Wall-mounting kit
  • Refrigerant leak detection as described in ASHRAE15-2004
  • Minimum 15 minute time delay

more information & related documents

Series Description

The Kele RLD-134A HFC Refrigerant Leak Detector is a solid-state HFC detector capable of detecting the presence of escaping refrigerant R-134a in building automation systems or HVAC and industrial applications. An analog output allows interfacing with computer monitoring equipment. An alarm relay is also provided with adjustable set point and jumper-selectable time delay function to prevent nuisance alarms. Four LED's provide status indication for warm-up, ready, warning, and alarm. When properly installed and maintained, the RLD-134A is designed to be used as part of a control system that helps to prevent the formation of a hazardous environment. For more information on the proper application and use of this product please read 'Environmental Safety Devices' in our technical reference section.

Kele Description

REFRIGERANT LEAK DETECTOR

Manufacturer

Kele

Related Documents

PDF - RLD134A Installation ManualRLD134A Installation Manual
