560693 | Burkert | Gas & Specialty Sensors
1IN NPT MOUNTING ADAPTER TEE
Brand:Burkert
MPN:560693
SKU:560693
List Price:
$933.00
Today's Price:
$485.16
product series specifications
- Supply Voltage:
- 14-36 VDC reversed polarity protection
- Accuracy:
- Conductivity: ± 3% of measured value
- :
- Temperature ±1.8‚Ñâ (1‚ÑÉ)
- Supply Current:
- With Sensor:≤ 1 A (with transistor loads) analog output: ≤ 25 mA (at 14 VDC without transistor loads, with current loop)
- Signal Output:
- Standard:
- Switch: Transistor, 1-36 VDC @ 0.5 A max.
- :
- Current: 4-20 mA @ 610Ω
- Neutrino:
- Current: 4-20 mA @ 610Ω
- Resolution:
- 1 nS/cm
- Measurement Range:
- Conductivity: 0.05 ŒºS/cm to 10 mS/cm Temperature: -40° to 266°F (-40° to +130°C)
- Display:
- Grey dot matrix 128x64 with backlighting
- Response Time:
- 150 ms (10 to 90%)
- Materials Of Construction:
- Housing / cover: Stainless steel 1.4561, PPS / PC Seals / Screws EPDM / Stainless steel Fixed connector mounting plate: Stainless steel Fixed connector: Brass nickel plated Display / navigation key: PC / PBT Nut: PVC or PVDF Wetted part materials Conductivity sensor: PVDF, stainless steel 1.4571 (316Ti) Electrode: Stainless steel 1.4571 (316Ti ) for cell constant C=0.01 or C=0.1 or graphite for cell constant C=1.0
- Wiring Terminations:
- Single analog output: 1x 5-pin M12 male fixed connector
- Fluid Pressure Limit:
- 0 to 87 PSI (0 to 6 bar)
- Maximum Pressure:
- 58 psi (4 bar)
- Media Temperature Range:
- PVC nut connection: 32° to 122°F (0° to +50°C)
- Operating Humidity:
- ≤ 85%, without condensation
- Operating Temperature:
- Transmitter: 14° to 140°F (-10° to +60°C); Probe 32° to 140°F (0° to +60°C)
- Enclosure Rating:
- NEMA 4, IP65 and IP67 with M12 cable plug mounted and cover tightened
- Dimensions:
- Standard:
- 9.6‚Ä=H x 2.6‚Ä=W x 3.8‚Ä= D (24.4 x 6.5 x 9.7 cm)
- Neutrino:
- 7.4‚Ä=H x 2.4‚Ä=W x 3.4‚Ä=D (18.7 x 6.0 x 8.8 cm)
- Weight:
- Standard:
- 0.88 lb (0.4 Kg) complete unit
- Neutrino:
- 0.52 lb (0.24 Kg) complete unit
- Approvals:
- UL File E237737, CSA, CE
- Warranty:
- 1 year
product series features
- Programmable outputs: two transistor and single or dual analog 4-20 mA
- Removable backlighted display
- Universal process connection
- Three cell constants for covering a wide measuring range C = 0.01, 0.1 and 1.0 standard
- Diagnostic functions
- Additional material contruction: PVC or PVDF
more information & related documents
Series Description

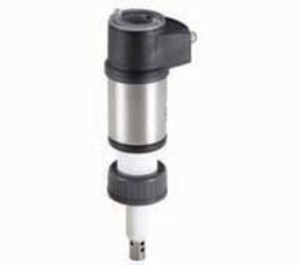

The Burkert 50000 Conductivity Series is a compact transmitter designed for measuring the conductivity of fluids. The transmitter consists of a sensor, enclosure with cover, and an optional and removeable display. The sensor comprises a cell with two electrodes and a platinum 1000 ohm temperature probe. The sensor itself is available with three different cell constants; C = 0.01, 0.1, and 1.0. The C = 1.0 constant uses graphit electyrode, while the other two incorporate stainless steel. The conductivity transmitter can operate independant of the display but the display is required for programming the transmitter. The 50000 Series is available with three fully programmable outputs (two transistor and one 4-20 mA analog output). The 50000 'Neutrino' Series, a less featured conductivity transmitter, has only one 4-20 mA analog output and is not available with LCD display.
Kele Description
1IN NPT MOUNTING ADAPTER TEE
Manufacturer
Burkert
