559638 | Burkert | Gas & Specialty Sensors

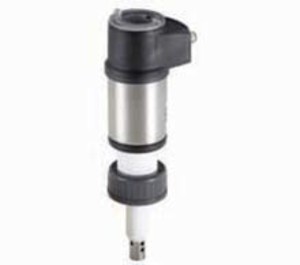

8222 STANDARD TRANSMITTER CONSTANT C=1.0
Brand:Burkert
MPN:559638
SKU:559638
List Price:
$5,540.00
Today's Price:
$2,880.80
Log in for customized pricingproduct series specifications
Supply Voltage: 14-36 VDC reversed polarity protection
Accuracy:Conductivity: ± 3% of measured value, Temperature: ±1.8°F (1°C)
Supply Current:With Sensor: <= 1 A (with transistor loads) analog output: <=25 mA (at 14 VDC without transistor loads, with current loop)
Signal Output:
Standard: Switch: Transistor, 1-36 VDC @ 0.5 A max.
Current: 4-20 mA @ 610Ω
Neutrino: Current: 4-20 mA @ 610Ω
Resolution: 1 nS/cm
Measurement Range:
Conductivity: 0.05 μS/cm to 10 mS/cm
Temperature: -40° to 266°F (-40° to +130°C)
Display: Grey dot matrix 128x64 with backlighting
Response Time: 150 ms (10 to 90%)
Materials Of Construction:Housing / cover: Stainless steel 1.4561, PPS / PC Seals / Screws EPDM / Stainless steel, Fixed connector mounting plate: Stainless steel, Fixed connector: Brass nickel plated, Display / navigation key: PC / PBT, Nut: PVC or PVDF, Wetted part materials Conductivity sensor: PVDF, stainless steel 1.4571 (316Ti), Electrode: Stainless steel 1.4571 (316Ti ) for cell constant C=0.01 or C=0.1 or graphite for cell constant C=1.0
Wiring Terminations: Single analog output: 1x 5-pin M12 male fixed connector
Fluid Pressure Limit: 0 to 87 PSI (0 to 6 bar)
Maximum Pressure: 58 psi (4 bar)
Media Temperature Range:PVC nut connection: 32° to 122°F (0° to +50°C)
Operating Humidity: <= 85%, without condensation
Operating Temperature:Transmitter: 14° to 140°F (-10° to +60°C); Probe 32° to 140°F (0° to +60°C)
Enclosure Rating: NEMA 4, IP65 and IP67 with M12 cable plug mounted and cover tightened
Dimensions: Standard: 9.6"H x 2.6"W x 3.8"D (24.4 x 6.5 x 9.7 cm)
Approvals:UL File E237737, CSA, CE
Warranty:1 year
product series features
- Programmable outputs: two transistor and single or dual analog 4-20 mA
- Removable backlighted display
- Universal process connection
- Three cell constants for covering a wide measuring range C = 0.01, 0.1 and 1.0 standard
- Diagnostic functions
- Additional material contruction: PVC or PVDF
more information & related documents
Series Description
The Burkert 50000 Conductivity Series is a compact transmitter designed for measuring the conductivity of fluids. The transmitter consists of a sensor, enclosure with cover, and an optional and removeable display. The sensor comprises a cell with two electrodes and a platinum 1000 ohm temperature probe. The sensor itself is available with three different cell constants; C = 0.01, 0.1, and 1.0. The C = 1.0 constant uses graphit electyrode, while the other two incorporate stainless steel. The conductivity transmitter can operate independant of the display but the display is required for programming the transmitter. The 50000 Series is available with three fully programmable outputs (two transistor and one 4-20 mA analog output). The 50000 'Neutrino' Series, a less featured conductivity transmitter, has only one 4-20 mA analog output and is not available with LCD display.
Kele Description
8222 STANDARD TRANSMITTER CONSTANT C=1.0
Manufacturer
Burkert
50000 Conductivity Neutrino Installation manual
