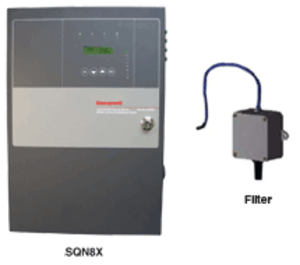

* product series image displayed

SQ84-O2 | Honeywell Analytics | Gas & Specialty Sensors

O2 GAS MONITOR 4 POINT

Brand:Honeywell Analytics

MPN:SQ84-O2

SKU:SQ84-O2

List Price:

$-.--

Today's Price:

$-.--

catalog page

product series specifications

Supply Voltage: 24 VAC @ 18 VA

Accuracy: ±3%

Relay Output: Three DPDT relays (three alarms)

Relay Output Rating: 5A, 30 VDC or 250 VAC (resistive)

Alarm Auditory Levels: 110 dBA at 3 ft (1m)

Measurement Range:

Oxygen: 0 to 25%

Refrigerants: 0 to 1000 ppm

Sensing Technology:

Oxygen: Diffusion fuel Cell

Refrigerants: Electrochemical

Sampling Distance: 100 ft (30.5) per port (included); Maximum 1000 ft (305m)

Visual Indication:

Green LED: Normal

Red LED: Alarm levels 1 and 2

Yellow LED: failure indication

Green LED: Aspirated zone indication

Operating Temperature: 32° to 100°F (0° to 40°C)

Operating Humidity: 15% to 90% RH, noncondensing

Dimensions: 20.3"H x 13.0"W x 3.75"D (51.4 x 33 x 10 cm)

Weight: 26.5 lbs (12 kg)

Approvals: CSA

Warranty: 1- year

product series features

Visual indicators and audible alarm
Programmable alarm levels
Two sampling points
Failure indicator
Three alarm levels
Integrated flow loss surveillance
Programmable relay differential

more information & related documents

Series Description

The Honeywell Analytics SQN8X is a sample draw gas monitor. The standard unit (SQN82) has two sampling points and a three-relay output for different stages of alarm. The unit is ideal for MRI rooms as the sampling point tubing can be up to 1000' from the monitor. The optional two-gas model will pick up both gases at each sampling point. Each unit includes 100 ft lengths of sampling tubing per number of ports ordered. The SQN8X Multipoint Sample Draw Gas Monitor is designed to be used as part of a control system that helps to prevent the formation of a hazardous environment when properly installed and maintained.

Kele Description

O2 GAS MONITOR 4 POINT

Manufacturer

Honeywell Analytics
