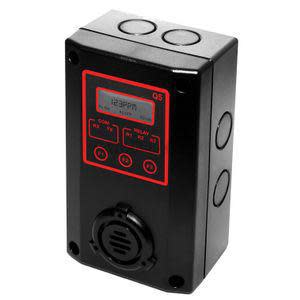

Black rectangular device with digital screen, speaker grill and LED indicators

Q5-O2-25V-0-X | ACI | Gas & Specialty Sensors

Smart Sensor, Oxygen, 0-25%V, 3 SPDT Relays, NEMA 4X, 4-20mA, 2-10V, or Modbus RTU

Brand:ACI

MPN:Q5-O2-25V-0-X

SKU:Q5O225V0X

List Price:

$3,301.00

Today's Price:

$1,716.52

product datasheet

Lead time of > 15 days. Chat with Kele experts now

product specifications

Measurement Range

0 - 25%

Display

Yes

Application

Industrial,Oil & Gas,Labs,Agriculture,Transportation,Mining

Output Signal

Voltage,Current

product series specifications

Supply Voltage: 15 to 24 VAC @ 7.2 VA; 18 to 30 VDC @ 300 mA

Communication: RS-485: Modbus, BacNet MS/TP

Signal Output: 4-20mA @ 0%, 1-5 VDC, 2-10 VDC

Measurement Range:

CO: 0-250 ppm

O2: 0 to 25%

H2S: 0 to 100 ppm

NH3: 0 to 1000 ppm

H2: 0 to 100% L.E.L.

SO2: 0 to 6 ppm

Sensing Technology:

CO, O2, H2S, NH3, SO2: Electrochemical

H2: Catalytic bead

Life Expectancy: 2-3 years

Display: Backlit LCD and (5) LEDs

Relay Output: (3) SPDT, 1 A @ 30 VDC

Alarm Auditory Levels [Db]: 80 dBA at 3 ft (1m)

Operating Humidity: 5% to 95% RH, noncondensing

Operating Temperature: -40° to 158°F (-40° to 70°C)

Dimensions: 5.9"H x 3.5"W x 2.6"D (15 x 8.9 x 6.6 cm)

Weight: Wall: 1.0 lbs (0.45 Kg), Duct: 1.2 lb (0.54 Kg)

Warranty: 1 year

product series features

Modbus or BacNet MS/TP compatible
Built-in 80 dBA buzzer
Wide variety of gases detected
Backlite LCD display
(3) SPDT relay output
LED status indication
Password protection
Optional Duct mount

more information & related documents

Series Description

The ACI Q5 & B5 Series: Network Compatible Gas Detectors - are microprocessor-based smart gas transmitters that are paired with either an electrochemical gas sensor for toxic gases, or a catalytic bead sensor for combustible gases. The user can select from numerous display options including relay status, time, concentration, other data, or nothing at all. All programming and calibration is nonproprietary, and is accessed through a user selectable password that protects system integrity.

Kele Description

OXYGEN, ELECTROCHEMICAL, 0-25% VOL

Manufacturer

ACI
