AS-A11-746-000-B | Macurco | Gas & Specialty Sensors

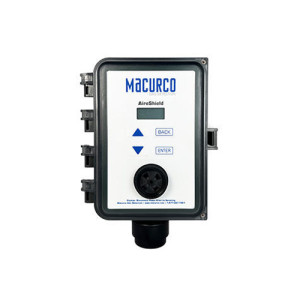

ANALOG AIRESHIELD, 1 REMOTE SENSOR : SF6, 2,000 PPM, SENSOR 2: NO SENSOR, ADD ON BUZZER
Brand:Macurco
MPN:AS-A11-746-000-B
SKU:AS-A11-746-000-B
List Price:
$4,158.00
Today's Price:
$2,162.16
Log in for customized pricingproduct specifications
Display
No
Application
Food & Beverage,Chillers,Building Automation System
product series specifications
Voltage: 12-24VAC, 12-32VDC
Current Draw: 4.08 W (max) from 12 to 24 VAC or 12 to 32 VDC
Signal: 4-20mA, 0-20mA, Modbus RTU
Sensor Type: NDIR Smart
Relays: 5 A SPDT and 0.5A
Optional Buzzer: >90 dBA at 10ft
Ambient Humidity: 0-95% RH non-condensing
product series features
- NEMA4X/IP65 enclosure
- Field replaceable smart sensor
- Optional buzzer
- Event logging
- Analog/digital output options
- 5 A SPDT and 0.5A relays to control fans, valves, louvers, horns and strobes
- Intuitive calibration process
- Remote Sensor (up to 2 per transmitter)
more information & related documents
Series Description
The Macurco AireShield Polar Series is a complete product line with tremendous flexibility for detecting various refrigerants. The NDIR sensor technology with temperature compensation allows for the best accuracy while minimizing false alarms. Regardless of the application, this versatile detector exceeds code and compliance while delivering easy installation, maintenance, and commissioning through smart sensor technology, providing an array of events back to the user. This long-life detector will ensure your application is running safely at all times.
Kele Description
ANALOG AIRESHIELD, 1 REMOTE SENSOR : SF6, 2,000 PPM, SENSOR 2: NO SENSOR, ADD ON BUZZER
Manufacturer
Macurco
Aireshield_Datasheet
