GDS-WO2 | Kele | Gas & Specialty Sensors

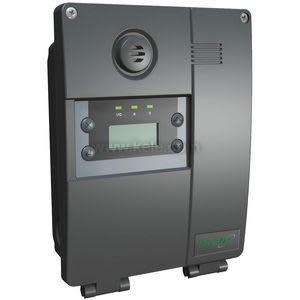

O2 Single Gas Detector Wall Mount

Brand:Kele

MPN:GDS-WO2

SKU:GDS-WO2

List Price:

$1,669.68

Today's Price:

$868.23

Availability: 53 In Stock

catalog page

product specifications

Application

Industrial, Oil & Gas, Labs, Agriculture, Transportation, Mining

Measurement Range

0 - 25% LEL

Output

4 - 20 mA

Display

Yes

Output Type

Multiple

Mounting Location

Wall

product series specifications

Supply Voltage: 17-27 VAC @ 8.4 VA, 50/60 Hz or 24-38 VDC @ 350 mA (E3SAH base unit is 120 VAC only)

Accuracy: ±3%

Signal Output: 4-20 mA @ 500?

Measurement Range: CO: 0-250 ppm, O2: 0% to 25%, H2S: 0-50 ppm, N2O: 0-10 ppm, CH4, C3H8, H2: 0% to 100% LEL

Sensing Technology:

CO, O2, H2S, NO2: Electrochemical

CH4, C3H8, H2: Catalytic combustion

Calibration Interval: 6 months

Life Expectancy: CO: 6 years, All Others: 2 years

Visual Indication: Green LED: power Amber LED 1: Alarm/fault Amber LED 2: Alarm/fault

Response Time: 50 seconds or less

Display: 8 character, two-line LCD

Display Resolution: CO: 1 ppm, O2: 0.2%, H2S, NO2: 0.2 ppm, CH4, C3H8, H2: 0.5%

Relay Output: (2) DPDT pilot duty, 150 VA max inductive, 5A @ 30 VDC, 250 VAC

Alarm Auditory Levels Db: 85 dBA @ 10 ft (3m)

Operating Temperature: CO: -4° to 122°F (-20° to 50°C), All Others: -40° to 122°F (-40° to 50°C)

Operating Humidity: 15 to 90% non-condensing

Dimensions: 8.1''H x 5.9''W x 2.7''D (20.6 x 14.9 x 6.7 cm)

Weight: Wall: 1.84 lb (0.83 Kg), Duct: 7.96 lb (3.61 Kg)

Approvals: ETL

Warranty: 1 year

product series features

Pre-calibrated plug-in sensors
Built-in 85 dBA buzzer
4-20 mA and two relay outputs
Wide variety of gases detected
Two-line LCD display
Wall or duct mount
Easy installation, commissioning, and operation
LED status indication
Password protection
Programmable relay differential

more information & related documents

Series Description

The Kele GDS Series Gas Detector is an independent microprocessor-based system. It provides continuous, effective toxic gas monitoring and combustible gas monitoring for building automation systems, BAS. The system detects, senses and monitors gases for environmental safety and control. The GDS Series provides a 4-20 mA output in proportion to the level of gas present and two relay outputs to activate additional horns, strobes, or ventilation systems. The gas detectors feature a functional and flexible design with pre-calibrated plug-in sensors. The unit features a two-line LCD for local indication, self test diagnostics, and a built-in 85 dBA buzzer. The rugged polycarbonate housing is resists rust, corrosion, and dents. When properly installed and maintained, the GDS Series Gas Detector can be used in a control system to prevent the formation of a hazardous environment.

Kele Description

O2 SINGLE GAS DETECTOR WALL MOUNT

Manufacturer

Kele
