GDN-BCO-1 | Kele | Gas & Specialty Sensors

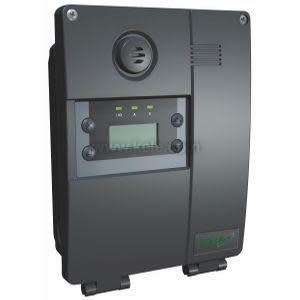

Co Network Carbon Monoxide Gas Detector Bacnet

Brand:Kele

MPN:GDN-BCO-1

SKU:GDN-BCO-1

List Price:

$1,607.76

Today's Price:

$836.04

Availability: 91 In Stock

catalog page

product specifications

Application

Industrial, Oil & Gas, Labs, Agriculture, Transportation, Mining

Measurement Range

0 - 250 ppm

Output

Communicating

Display

Yes

Output Type

Communicating

Mounting Location

Wall

product series specifications

Supply Voltage: 17-27 VAC @ 8.4 VA, 50/60 Hz or 24-38 VDC @ 350 mA

Accuracy: ±3%

Communication: RS485 Modbus, Bacnet MS/TP

Measurement Range:

CO: 0-250 ppm

O2: 0% to 25%

H2S: 0-50 ppm

N2O: 0-10 ppm

CH4, C3H8, H2: 0% to 100% LEL

Sensing Technology:

CO, O2, H2S, NO2: Electrochemical

CH4, C3H8, H2: Catalytic combustion

Calibration Interval: 6 months

Life Expectancy: CO: 6 years, All Others: 2 years

Visual Indication:

Green LED: power

Amber LED 1: Alarm/fault

Amber LED 2: Alarm/fault

Response Time: 50 seconds or less

Display: 8 character, two-line LCD

Relay Output: (1) DPDT pilot duty, 150 VA max inductive, 5A @ 30 VDC, 250 VAC

Alarm Auditory Levels Db: 85 dBA @ 10 ft (3m)

Display Resolution: 0.5%, 1 ppm, 0.2 ppm, 0.2%, 0.5%.

Operating Temperature: CO: -4° to 122°F (-20° to 50°C), All Others: -40° to 122°F (-40° to 50°C)

Operating Humidity: 15 to 90% non-condensing

Dimensions: 8.1''H x 5.9''W x 2.7''D (20.6 x 14.9 x 6.7 cm)

Weight: 1.84 lb (0.83 Kg)

Approvals: ETL

Warranty: 1 year

product series features

Modbus or BacNet MS/TP compatible
Pre-calibrated plug-in sensors
Built-in 85 dBA buzzer
Wide variety of gases detected
Two-line LCD display
DPDT relay output
Easy installation, commissioning, and operation
LED status indication
Password protection
Programmable relay differential

more information & related documents

Series Description

The Kele GDN Series Network Compatible Gas Detector optimizes BAS, fire, ventilation, and other security systems by providing continuous monitoring of toxic and combustible gases. Modbus or BACnet MS/TP protocols are supported by the GDN Series and can be quickly integrated into a BAS network. Activate alarms, horns, strobes, and fans through HVAC controls or directly from the on-board relay. The modular design adds functionality and flexibility with pre-calibrated plug-in sensors. The unit features a two-line LCD for local indication, self test diagnostics, and a built-in 85 dBA buzzer. The GDN Series is designed to be used as part of a control system that helps to prevent the formation of a hazardous environment when properly installed and maintained.

Kele Description

CO NETWORK CARBON MONOXIDE GAS DETECTOR BACNET

Manufacturer

Kele
