Q5-HCL-30P-0-A-G | Greystone Energy Systems | Gas & Specialty Sensors

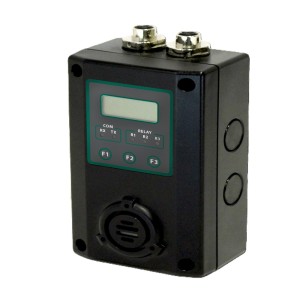

ANALOG TOXIC GAS TRANSMITTER, HYDROGEN CHLORIDE ELECTROCHEMICAL 0-30PPM, STANDARD ENCLOSURE
Brand:Greystone Energy Systems
MPN:Q5-HCL-30P-0-A-G
SKU:Q5-HCL-30P-0-A-G
List Price:
$2,622.00
Today's Price:
$1,363.44
Log in for customized pricingproduct specifications
Operating Humidity
5 to 95% (noncondensing)
Display
LCD
Application
Industrial Environments,Process Control,Oil & Gas
Operating Temperature Range
-22 to 144 °F,14 to 144 °F
product series specifications
Power Supply: 24 VAC, 24 VDC
Fuse: 0.750A Polyswitch
Accuracy: +/- 2.5% of reading
Repeatability: +/- 1% of reading
Response Time: Less than 30 seconds for 90% step change
Display: LCD graphic display c/w backlight
Panel Control: Keypad: 3 Capacitive touch sensing keys – F1, F2, F3
Panel Indicator: 5 Status LED’s, RS-485 TX and RS-485 RX (Green); Relay 1, Relay 2, Relay 3 (Red)
Warm Up Time: 1 Hour
Analog Outputs: 4-20 mA, 2-10 VDC, 1-5 VDC (linear, 3-wire)
Digital Output: RS-485 Modbus RTU/OptoMux (Proprietary GES Controller Protocol) connects to Q4C Controller, M-Controller and Q-Controller
product series features
- NEMA 4X Enclosure with an integral buzzer
- LCD display
- Pre-calibrated sensors
- Menu-selectable screens
- Non-proprietary programming and calibration
- Stand-alone or networked installation
- Analog outputs
- User-programmable relays and buzzer
more information & related documents
Series Description
The Q5 Series smart gas sensor/transmitters detect various toxic and combustible gases using different sensing technologies. This series offers flexibility, ease of use, and cost efficiency for gas detection applications.
Kele Description
ANALOG TOXIC GAS TRANSMITTER, HYDROGEN CHLORIDE ELECTROCHEMICAL 0-30PPM, STANDARD ENCLOSURE
Manufacturer
Greystone Energy Systems
Related Documents
Greystone Q5 Series Install Instructions
