CD2XA2MCX | Veris | Gas & Specialty Sensors

Air quality sensor, CD2 Series, CO2, temperature, MSTP, humidity, 20K NTC thermistor, VOC

Brand:Veris

MPN:CD2XA2MCX

SKU:CD2XA2MCX

List Price:

$1,185.00

Today's Price:

$616.20

product datasheet

installation instructions

Lead time of 7 days. Chat with Kele experts now

product specifications

Type

Multi-Sense

Display

Application

CO2

Output Signal

Voltage,Current

Mount

Duct

product series specifications

Operating Temp: Range 0 to 50 °C (32 to 122 °F)

Operating: Humidity Range 0 to 95% RH (non-condensing)

Storage Temp Range: -25 to 70 °C (-13 to 158 °F)

Storage Humidity: Range 0 to 95% RH (non-condensing)

Power Supply 3-wire volt mode: 20 to 30 Vdc, 24 Vac, 50 to 60 Hz

Output Analog: selectable 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

Protocol: BACnet MS/TP, Modbus RTU

Housing Material: Polycarbonate; flammability rating UL 94 V0

Mounting: For indoor use only. Not suitable for wet locations.

product series features

BACnet & Modbus: Embedded communication protocols for easy systems integration
Easy to install: Latch-on sensor cover & screwless terminal block wiring with spring actuator
Self-calibrating: Innovative self-calibration algorithm
Field selectable: Field-selectable outputs for operation flexibility
High accuracy measurement: ±20 ppm ±1% of measured value
Field replaceable: RH element and temp

more information & related documents

Series Description

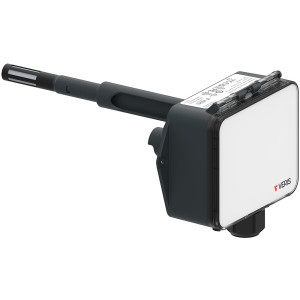

CD2 Series Air Quality Sensors are duct mount all-in-one sensors for monitoring air quality. The device combines CO2, temperature, humidity, VOC and particulate matter (PM) sensing into a single unit to ensure a building’s optimum air quality and energy efficiency.

Kele Description

AIR QUALITY SENSOR,CO2,DUCT,RH,20K NTC THERMISTOR,ANALOG

Manufacturer

Veris
