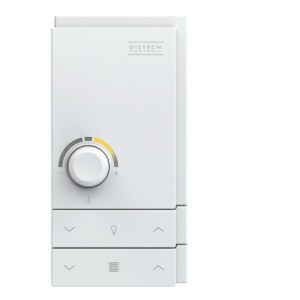

ALLURE EC-SMART-VUE-CH | Distech Controls | Gas & Specialty Sensors

Communicating room temperature, CO2 and humidity sensor with backlit display and graphical menus.

Brand:Distech Controls

MPN:ALLURE EC-SMART-VUE-CH

SKU:ALLURE EC-SMART-VUE-CH

This product is retiring, try a replacement PDITE-SMRTVUCH-00

List Price:

$-.--

Today's Price:

$-.--

catalog page

Lead time of 0 days. Chat with Kele experts now

product series features

Multi-sensing capabilities (temperature, humidity, CO2, and motion) using one wire and one connection
Optional CO2 sensor facilitates demand-controlled ventilation strategies
Optional motion sensor helps achieve energy efficiency through occupancy-based control
Automatic self-calibration system guarantees lifetime CO2 calibration
The ECO-Vue leaf pattern graphically indicates energy consumption in real time to promote an occupant’s energy-conscious behavior
Password protected technician mode allows an installer to perform commissioning and troubleshooting
Can be used as a hand-held tool for HVAC equipment configuration and system troubleshooting
When associated to VAV controllers, the Allure EC-Smart-Vue Series sensors can also perform air balancing of the system without requiring an onsite controls engineer.
Programmability with Distech Controls’ EC-gfxProgram, which makes Building Automation System programming effortless
Quick and easy installation: Both power and communications pass through a single Cat 5e cable for reduced installation costs and easier installation
Two RJ-45 ports facilitate the daisy-chain connections of room devices.

more information & related documents

Series Description

The Allure EC-Smart-Vue Series is designed to interface with Distech Controls’ ECLYPSE™ series BACnet/IP and Wi-Fi Controllers, ECB series BACnet® Controllers and ECL series LONWORKS ® Controllers. This line of communicating sensors with backlit display consists of eight models that provide precise environmental zone control. Models are available with any combination of the following: temperature, humidity, CO2, and motion sensor.

Kele Description

COMMUNICATING ROOM TEMPERATURE AND HUMIDITY SENSOR.

Manufacturer

Distech Controls
